Pneumatic Controller

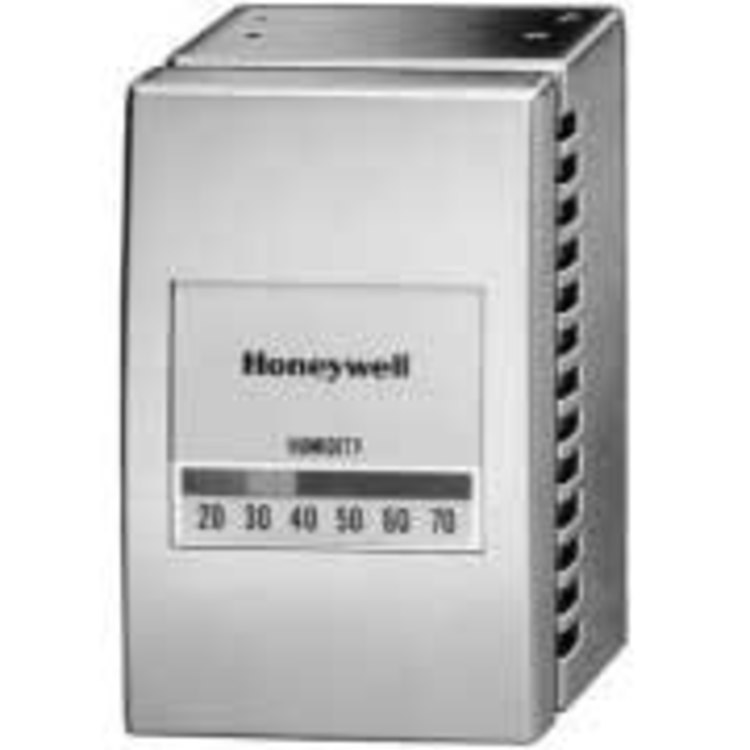

Honeywell HP970B1015/U

Pneumatic Controller Humidity Reverse Acting Single Setpoint with 2 Pipe Horizontal/Vertical 25 Pounds per Square Inch 45-125 Degrees Fahrenheit

Authorized Distributor

Account required to order

Two-pipe, single setpoint, pneumatic humidistat used to provide proportional control of pneumatic valves on humidification or dehumidification systems.

  • Durable HP970 series humidistat
  • Pilot operated for high capacity
  • Backplate has molded air connections, no separate fittings needed
  • 0.011 scfm airflow usage
  • 25 psi maximum safe operating pressure
  • 45 to 125 deg F temperature
  • -30 to +150 F shipping and storage temperature
  • Single setpoint
  • 2 pipes
  • 65 to 95% RH scale markings
  • 3 to 15% RH throttling

BrandHoneywell
Product TypeHumidity Reverse Acting Single Setpoint with 2 Pipe
MountingHorizontal/Vertical
Pressure25PSI
Temperature45-125DEG F
Size3-1/4x2x1-5/8IN
Shipping Weight0.700 LBS
