Damper Actuator

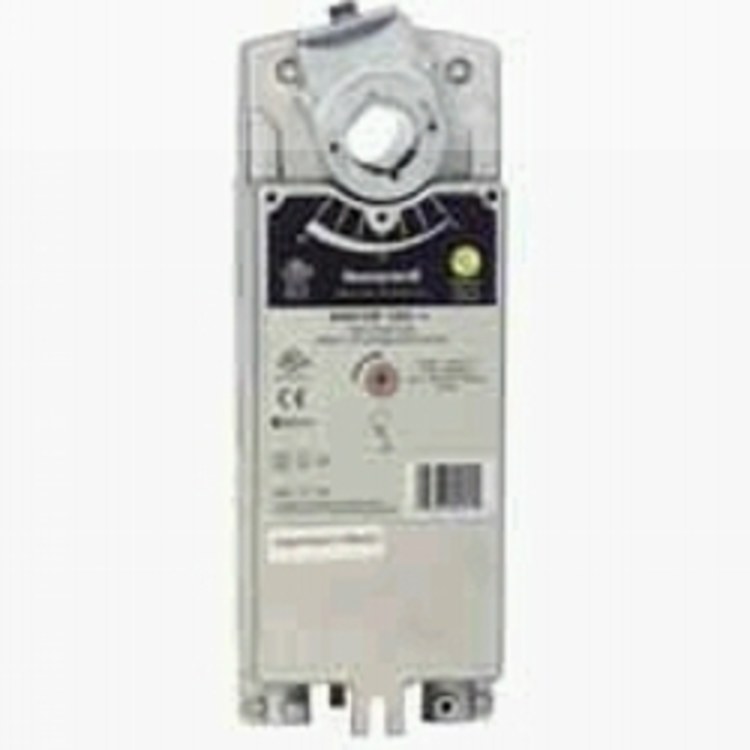

Honeywell MS8120A1007/U

Damper Actuator S20 2 Position SPST Spring Return Direct Coupled 24 Volt 50/60 Hertz

Authorized Distributor

Honeywell
$672.18  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

Installation Manual

  • Integral 1/2 in NPSM conduit connection
  • 50/60 Hz frequency
  • Electrical connections: 22 to 14 AWG enclosed screw terminal strip
  • 5 to 95% RH operating humidity, non-condensing
  • 40 VA driving, 8 VA holding power consumption
  • -40 to 158 deg F shipping and storage temperature
  • -40 to 140 deg F ambient temperature
  • Environmental, electrical or ingress protection rating: NEMA 2
  • No internal auxiliary switch
  • Maximum noise rating: Driving - 40 dB(A) at 1 m, holding - 20 dB(A) at 1 m (no audible noise)
  • 95+/-3 deg stroke
  • 3/8 to 1.06 in round or 3/8 to 11/16 in square shaft
  • Control signal: 2-position, SPST
  • Additional torque ratings: Maximum stall - 300 lb-in
  • Rotational stroke adjustment: Mechanically limited 5 deg increments

BrandHoneywell
Product Type2 Position SPST
StyleSpring Return
MountingDirect Coupled
Voltage24V
Frequency50/60Hz
Torque Rating175IN LB
Temperature-40 to 140DEG F
ApplicationHVAC Systems
Shipping Weight8.000 LBS
