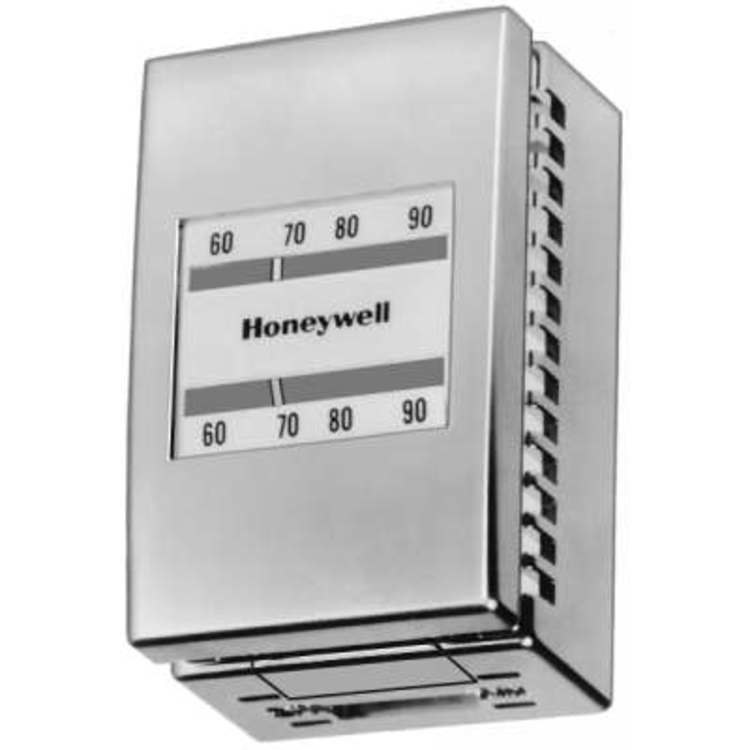

Pneumatic Thermostat

Honeywell TP973A2076/U

Pneumatic Thermostat TP973 Direct Acting Wall 59-90 Degrees Fahrenheit

Authorized Distributor

$383.17  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

Single temperature, low capacity, pneumatic thermostat provides control of pneumatic valves and damper actuators in HVAC systems. Replacement kits are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell pneumatic thermostats.

  • Backplate has molded air connections-no separate fittings needed
  • Low capacity thermostat
  • Built in restrictor for two-pipe applications
  • 0.011 scfm airflow usage
  • Order cover separately
  • 100 deg F temperature
  • For one-pipe order an external 0.005 in restriction
  • 150 deg F maximum shipping and storage

BrandHoneywell
Product TypeDirect Acting
MountingWall
Temperature59-90DEG F
Size3-1/4x2x1-5/8IN
Used onValve and Damper Actuators in Pneumatic HVAC Control Systems
Shipping Weight1.000 LBS
