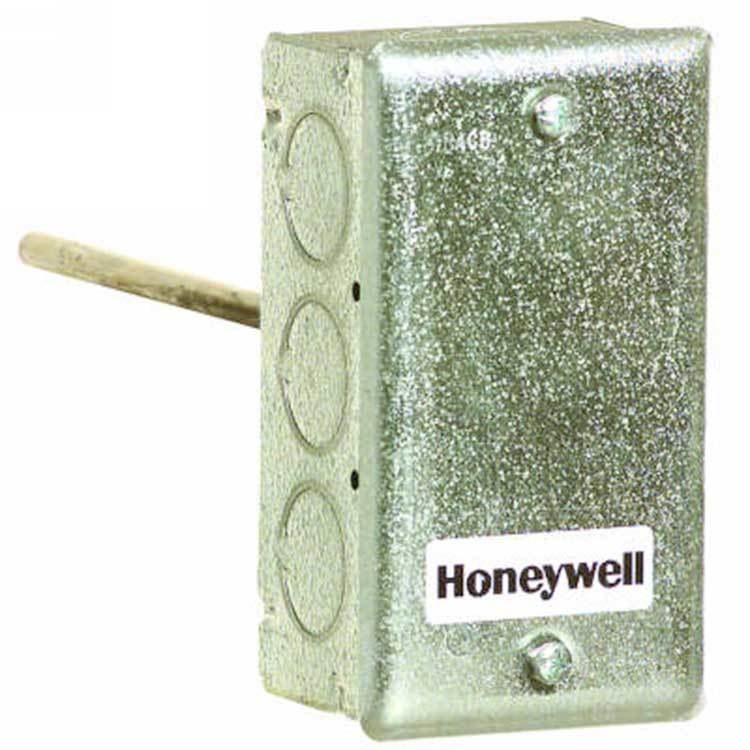

Temperature Sensor Electronic with 5 Inch Insertion Immersion -40 to 250 Degrees Fahrenheit 4-3/16 x 2-5/16 x 1-11/16 Inch

The C7041 Electronic Temperature Sensors are 20K ohm NTC sensors designed to be used with electronic controllers in domestic or commercial heating and cooling systems.

• The C7041 series of electronic temperature sensors are designed for use with the excel 10, excel 15 or any controller requiring a 20 kOhm NTC non linearized sensor input
• Various models are available for sensing duct air temperature, averaging air temperature, water temperature, outdoor air temperature or water pipe temperature
• All devices consist of a temperature sensitive element and leadwires enclosed for protection from physical damage
• Sensor element enclosures are made of various lengths and configurations for the specific applications
• All devices have a wiring box housing to enclose the field wiring connections, C7041F outdoor sensor design, made of aluminum and stainless steel, is waterproof and includes a sunshield
• 5 in L insertion
• Used with excel 10, 50, 80, 100, 500
• For immersion sensor for hot or chilled water
• 20 kOhm NTC at 77 deg F
• 302 to 150 deg C ambient
