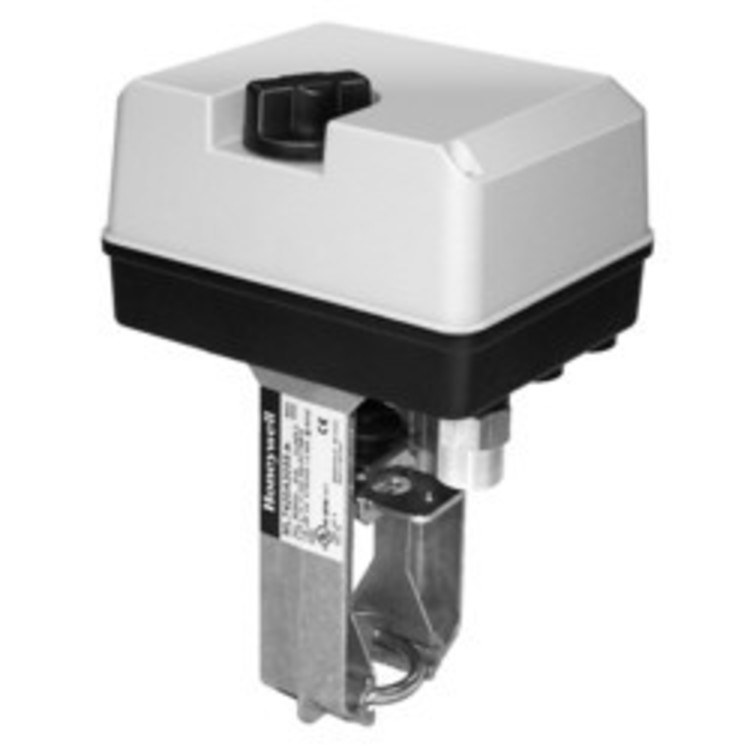

Valve Actuator Non-Spring Return Globe Direct Coupled 24 Volt for HVAC Systems

The ML6421A,B Non-Spring Return Electric Linear Valve Actuators are suitable for use with low-voltage, single-pole double-throw (spdt), Series 60 two-position and floating controllers. These actuators operate standard Honeywell valves in heating, ventilating, and air conditioning (HVAC) applications. The ML7421A,B Non-Spring Return Electric Linear Valve Actuators are modulating control actuators used with control that provide an analog output of 0 to 10 Vdc or 2 to 10 Vdc. These actuators operate standard Honeywell valves in HVAC applications. An internal selector plug can be used to reverse the direction of action.

• Easy and quick installation on valves with 1-3/8 in bonnet and 3/4 in stroke or with 1-7/8 in bonnet and 1-1/2 in stroke
• High force for VGF Pressure-balanced valves
• No separate linkage required
• Conduit connector standard
• No adjustments required on linkage
• Accurate valve positioning
• Low power consumption
• High close-off ratings
• Force limiting end switches
• Manual operator (knob)
• Synchronous motor
• Maintenance-free
• Directly on V5011/V5013 globe valves and VGF flanged globe valves mount
• 0 to 10/2 to 10 VDC control signal
• Two knockout holes for 1/2 in conduit standard on actuator case
