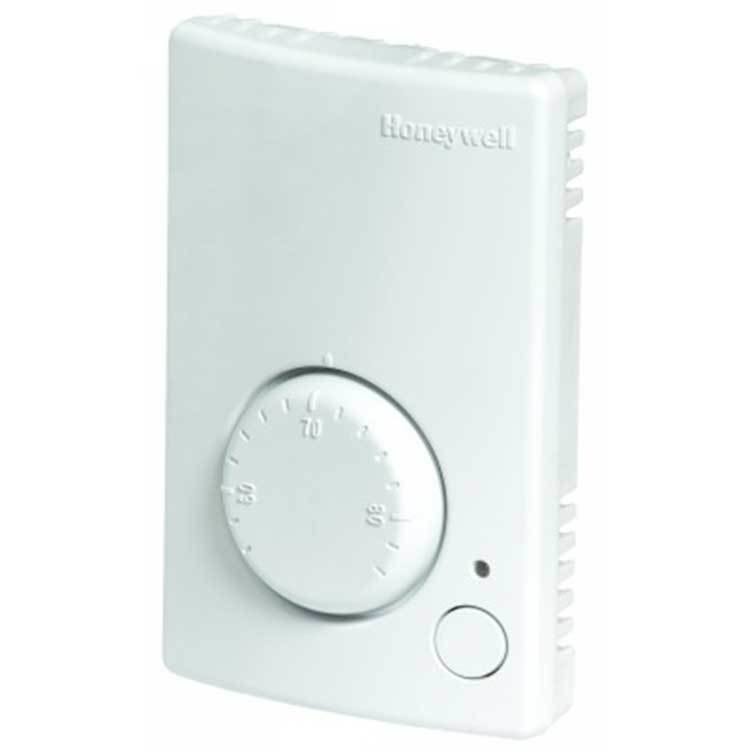

Wall Module Non-Linear Temperature Sensor with Setpoint Override 2 x 4 Inch Junction Box

The TR21, TR22, TR23and TR24 are a family of direct wired wall modules for use with Honeywell Excel 600, 500, 100and 80 controllers, Excel 10 W7750, W7751A, W7752and W7753 controllers, W7761 Controller, and Spyder Unitary Controllers.

• Wall module networked sensor
• Use with Spyder, Excel 600, 500, 100, 80 and Excel 10, 15 series controllers, also with T7350 thermostat
• -40 to 150 deg F shipping and storage temperature
• 55 to 85 deg F setpoint temperature
• Mounted on a standard 2 x 4 in junction box or on a 60 mm Dia junction box
• Plastic enclosure
• Network communications: LonWorks bus
• Non-condensing humidity
