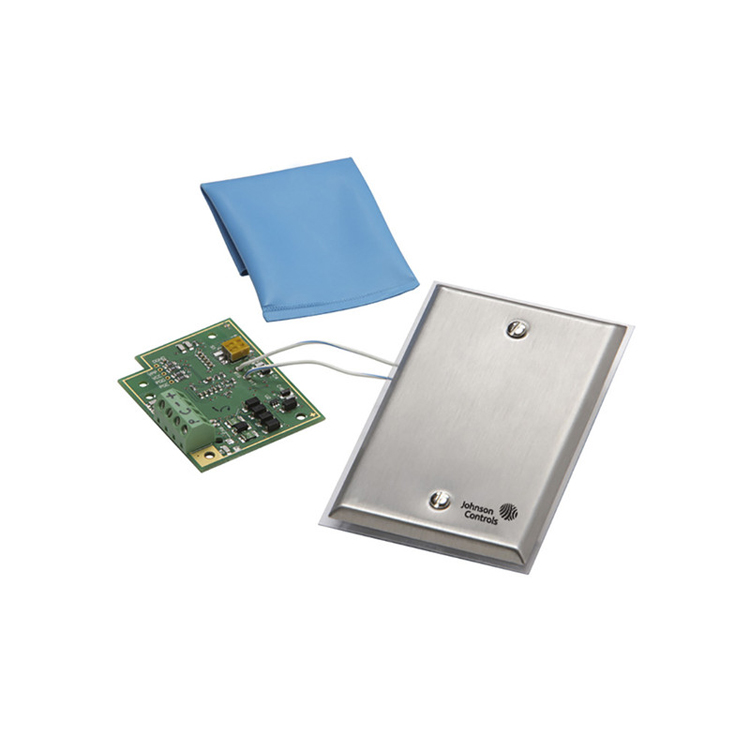

NS Series Flush-Mount Network Sensor

This Model Measures Temperature Only

The NS Series Flush-Mount Network Sensors are wall-mounted temperature sensors designed for use with Johnson Controls digital controllers in Heating, Ventilating, and Air Conditioning (HVAC) systems. Models in this series monitor the space temperature, typically in a room, and transmit this data to a Field Equipment Controller (FEC), a Variable Air Volume (VAV) Modular Assembly (VMA) 16, or a Network Control Engine (NCE) on the Sensor Actuator (SA) Bus. The wires connecting the network sensor to the controller must be terminated using the screw terminal block on the flush-mount sensor module.

The wall sensors include DIP switches for applications requiring multiple flush-mount sensors, each with a unique DIP switch address.

• Dimensions: 2-3/4" W x 4-1/2" H
• Flush mount
• No LCD display
• Temperature measurement range: 32 to 104 degrees F
• Terminations: screw terminal block
• DIP switch (200 to 203)
• Includes Johnson Controls logo
