Pneumatic Thermostat

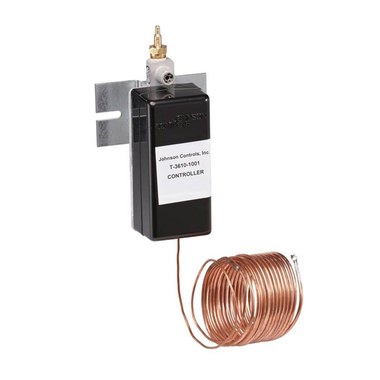

Johnson Controls T-3610-1002

T-3610 Pneumatic Low-Limit Thermostat

Authorized Distributor

Johnson-Controls
$736.49  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

Element Provides Air Temperature Control

The T-3610 Pneumatic Low-Limit Thermostat is a low volume controller designed to maintain a minimum air temperature. Pneumatic feedback is incorporated into the controller design to provide an exact proportional relationship between the measured temperature and the control pressure.
  • Dimensions: 2-1/2" L (front to back) x 1-3/4" W x 4-25/64" H
  • 18" rigid stem element for unit ventilator mounting
  • Proportional, direct-acting
  • Element operating range: 0 to 270 degrees F
  • Sensitivity range: adjustable from 0.25 to 0.75 PSI/degree F
  • Set point range: adjustable from 0 to 270 degrees F
  • Supply pressure: 20 PSIG nominal, 25 PSIG max.
  • Air consumption: 45 SCIM
  • Temperature limits: -20 to 150 degrees F
  • Air connection: 1/8" NPT barbed fitting for 5/32 or 1/4" O.D. polytubing
  • Die cast aluminum body with Iridite finish
  • ABS plastic cover
  • Copper element

BrandJohnson Controls
Product TypeLow Limit with 18FT Capillary
Details1 Pipe
MountingWell
Used onHeating and/or Cooling
Shipping Weight3.000 LBS
