Pneumatic Thermostat

Johnson Controls T-4506-204

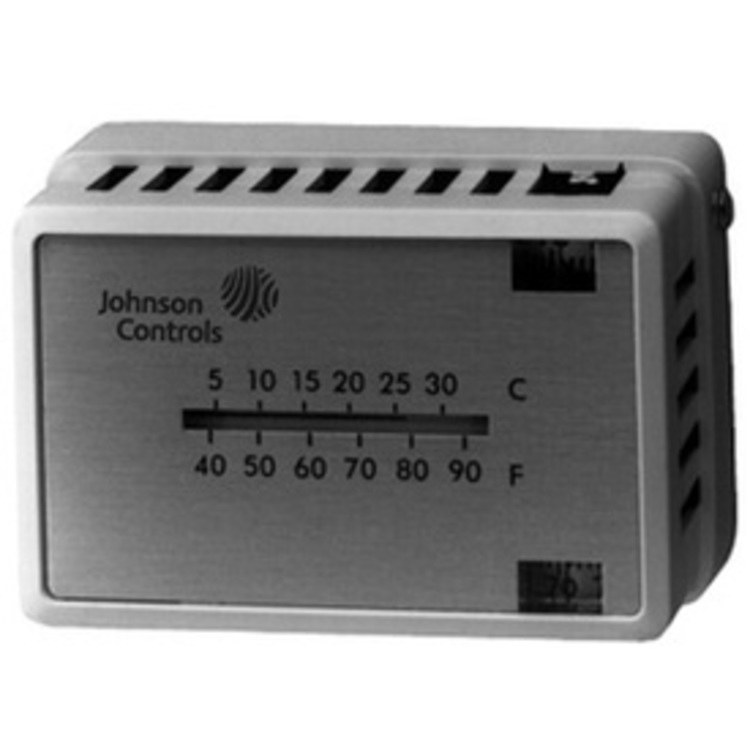

T-4506 Dual Temperature Day-Night Room Thermostat

Authorized Distributor

Johnson-Controls
$522.99  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

Specification Sheet

Dual Temperature Thermostat

The T-4506 Thermostat is a high-volume output, dual-temperature, dual-dial thermostat. It provides individual day and night, or two set-point temperature control.
  • Without Indexing Switch - switchover at 17 PSIG
  • Direct Acting (DIR)
  • Mounts vertically
  • Includes Fahrenheit dial
  • Dial range: 55 to 85 degrees F
  • Air consumption: 20 SCIM
  • Output flow capacity: 400 SCIM
  • Two air connections: supply and output
  • Supply pressure: 13 to 25 PSIG
  • Nominal day: 15 PSIG
  • Nominal night: 20 PSIG

BrandJohnson Controls
Product TypeDirect Acting Day Night Room
DetailsLess Indexing Switch
MountingVertical
Temperature55-85DEG F
Used onHeating and/or Cooling
Shipping Weight3.000 LBS
