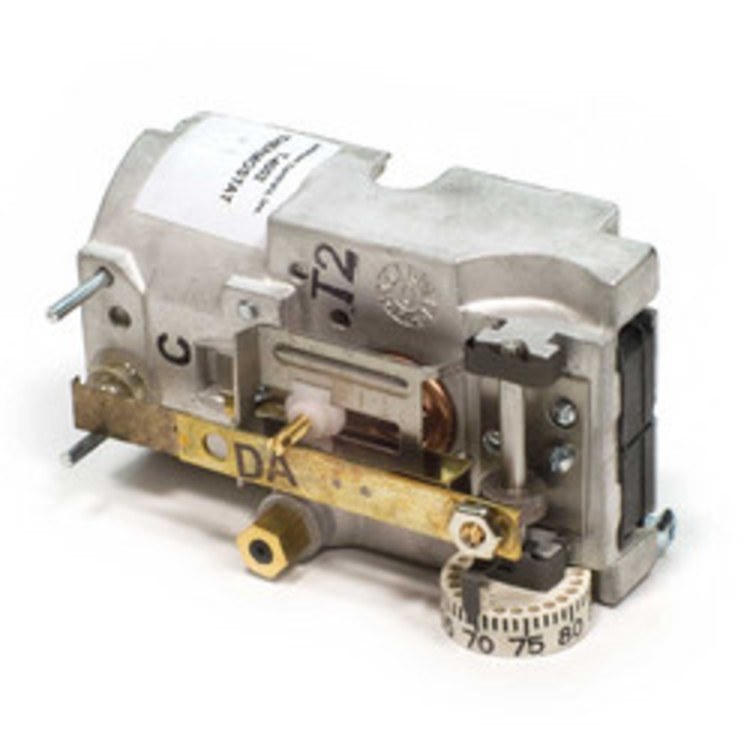

Pneumatic Thermostat

Johnson Controls T-4756-201

T-4756 Heating-Cooling High-Volume Output Thermostat

Authorized Distributor

Johnson-Controls

Specification Sheet

Dual Temperature Thermostat

The T-4756 Thermostat is a high-volume output, dual-temperature, dual-dial, heating-cooling thermostat. It provides automatic changeover between direct and reverse actions when the supply pressure changes from 15 to 20 PSIG.

Pressure: 15 PSIG DIR, 20 PSIG REV
Mounts horizontally
Includes Fahrenheit dial
Two air connections: supply and output
Dial range: 55 to 85 degrees F
Air consumption: 20 SCIM
Output flow capacity: 400 SCIM

Brand	Johnson Controls
Product Type	Direct Acting/Reverse Acting Dual
Mounting	Horizontal
Pressure	15-20PSIG
Temperature	55-85DEG F
Used on	Heating and/or Cooling
Shipping Weight	3.000 LBS
