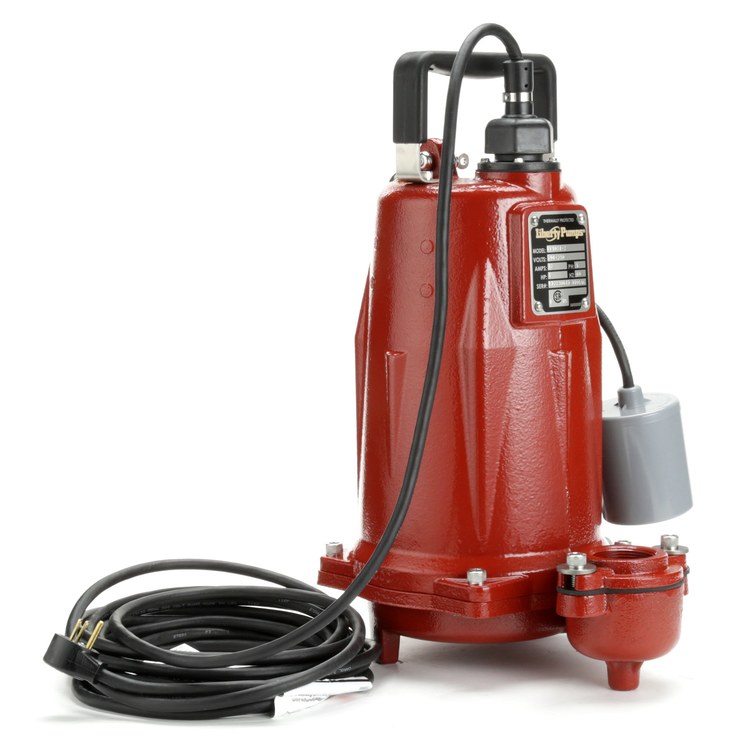

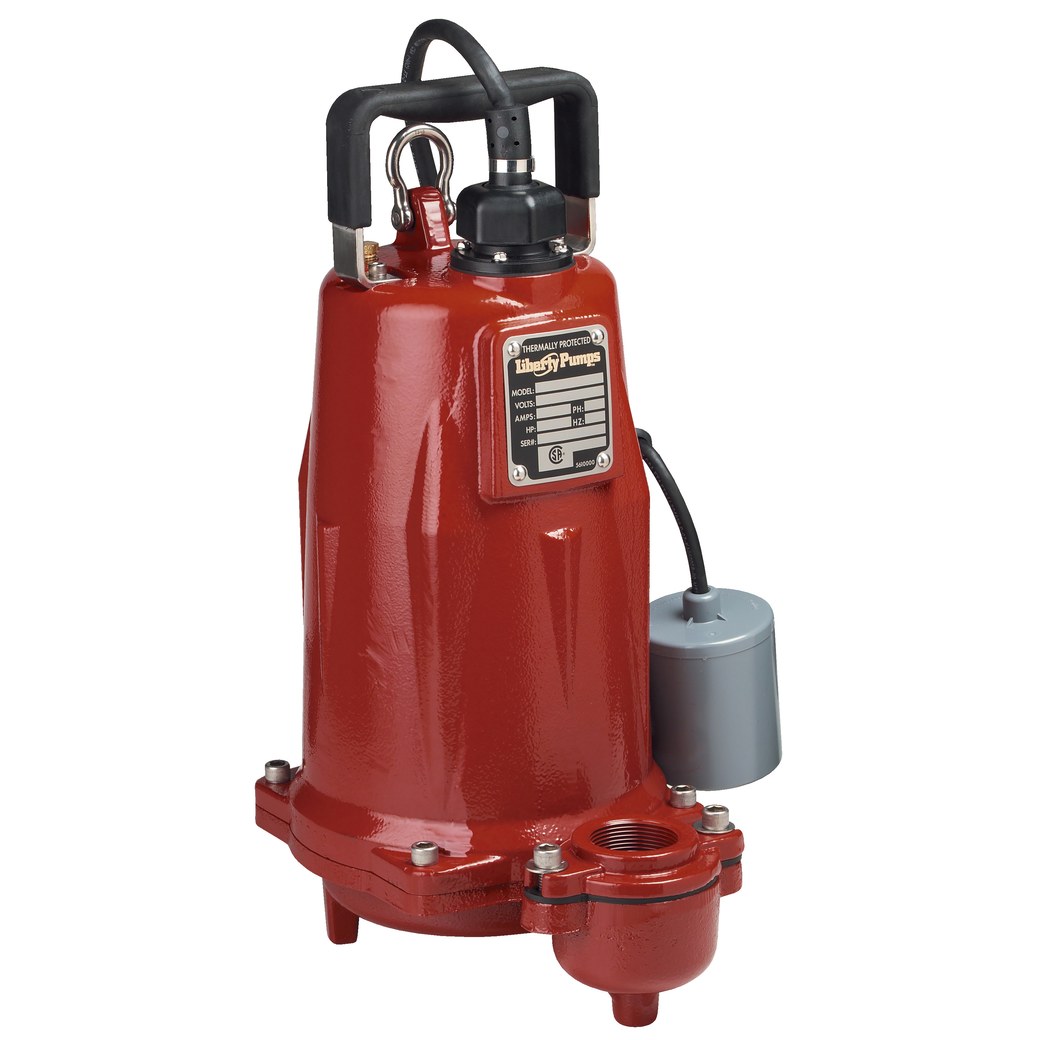

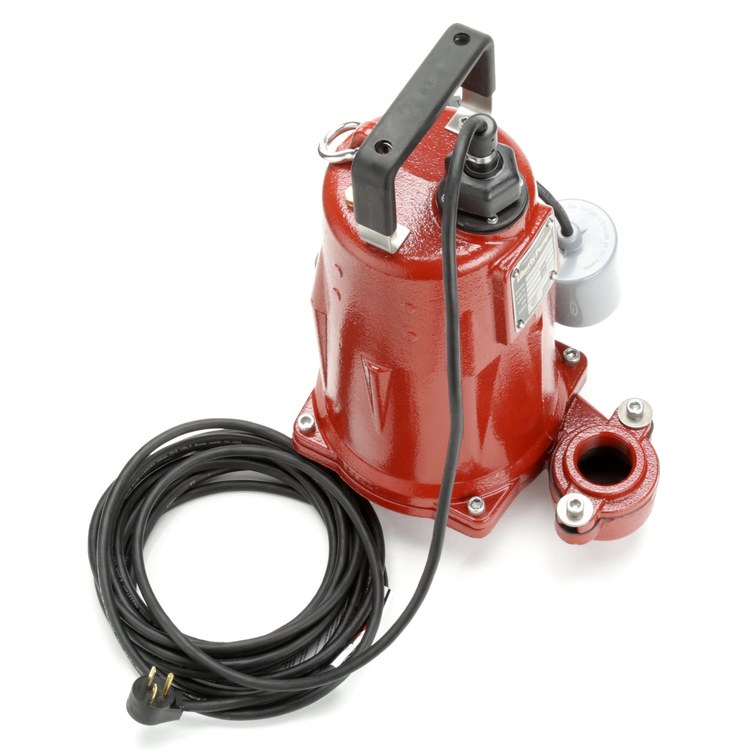

FL100 Series Submersible Effluent Pump

High-Head Effluent Pump

Liberty Pumps designed the FL100-Series to cover a wide-range of high-head pump applications, including STEP systems, mound systems, liquid waste transfer, and higher head de-watering. The pump has a unique one-piece cast iron body with an epoxy powder coat finish, stainless steel fasteners, and a quick-connect power cord in 25' standard length. It features a dual-sized threaded discharge of 1-1/2" and 2" for connection to either size pipe. The FL100-Series will provide years of reliable performance.

• Flow rate: 105 gpm
• 1 HP
• 3/4" solids handling
• 208-230V/1ph/12A
• Heavy cast iron construction
• Semi-open cast iron impeller
• Stainless steel rotor shaft
• Dual shaft seals
• Single float, mercury-free level control
• Additional mounting clamp provided for optional switch mounting to pipe
• Fully adjustable pumping range
• 2" FNPT threaded discharge with 1-1/2" FNPT flange provided
• Quick-connect power cord - 25' length standard
• Automatic operation mode
