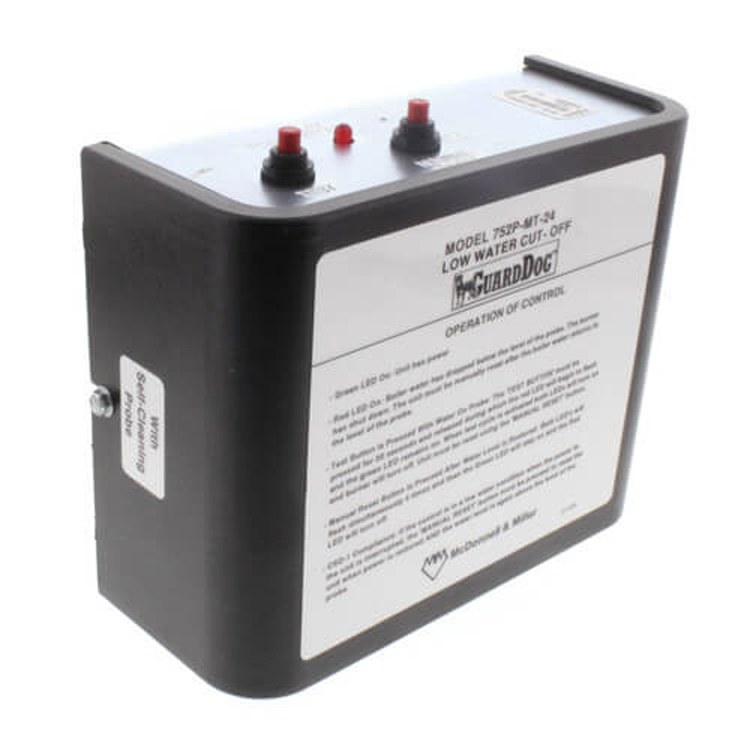

Low Water Cut Off Control

McDonnell Miller 176296

Low Water Cut Off Control 752P-MT-24 with Standard Probe 24 Voltage Alternating Current

Authorized Distributor

Account required to order

The Series 751P/752P probe type LWCOs provide protection against low water conditions for commercial and industrial applications. These controls are fully CSD-1 compliant and are primarily used as LWCOs on hot water heating boilers.

  • 120V/24V Models available
  • Green LED indicates power On
  • Red LED indicates Low Water
  • Test button
  • Meets requirements of ASME Standards CSD-1
  • No lock out with loos of power if probe is in water
  • 20,000 ohms probe sensitivity

BrandMcDonnell Miller
Product TypeWith Standard Probe
Voltage24VAC
Pressure15/160PSI
End Connection3/4IN NPT
ServiceSteam/Water
ApplicationBoiler Control
Shipping Weight3.000 LBS
