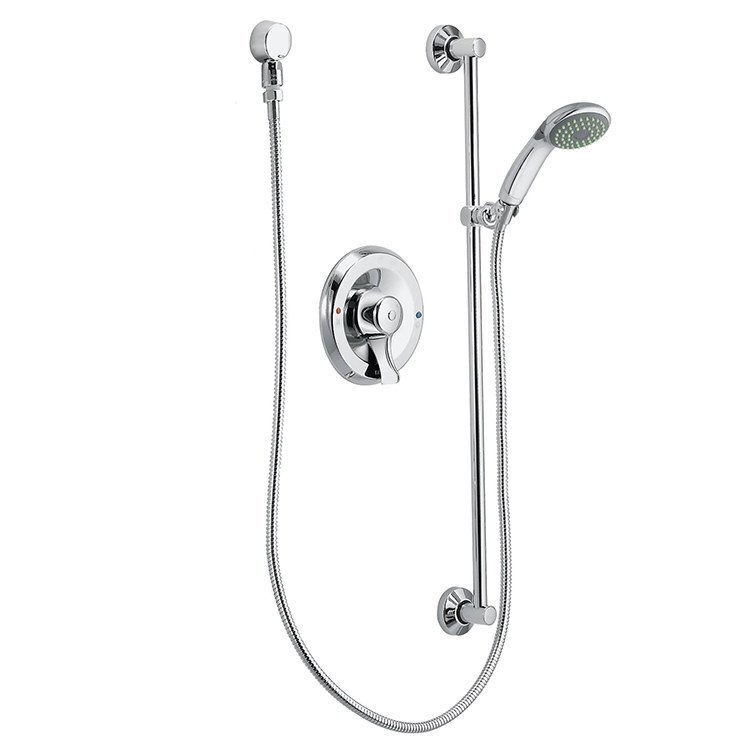

Single Handle Pressure Balancing Handshower System with Slide Bar

Efficient Designs for Heavy-Use Applications.

This single-handle pressure balancing handshower system includes pressure balancing valve trim with 1/4 turn stops, a handshower with non-positive pause, a 30" slide bar, a drop ell, 69" metal shower hose, and mounting hardware. The temperature handle operates counterclockwise through a 270-degree arc with off at 6 o'clock, and the maximum hot at the 9 o'clock position, adjustable temperature limit stop, and a pressure balancing mechanism that maintains a selected discharge temperature to +/- 2 degrees. The 8-1/8" handshower has a 3-5/16" diameter spray face with quick-clean nozzles.

• 1.5 gpm flow rate
• Pressure balancing mechanism maintains selected temperature
• 1222HD brass cartridge design in temperature control valve accommodates back to back installations
• Brass construction with stainless steel materials
• Accommodates back-to-back installation
