Commercial Posi-Temp Shower/Handshower System with Slide Bar

Efficient Designs for Heavy-Use Applications.

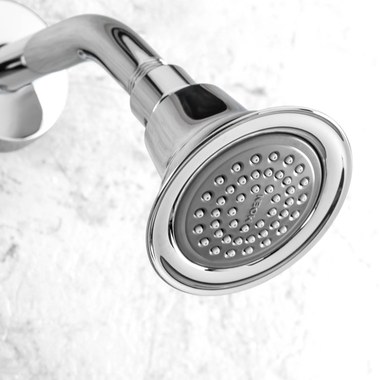

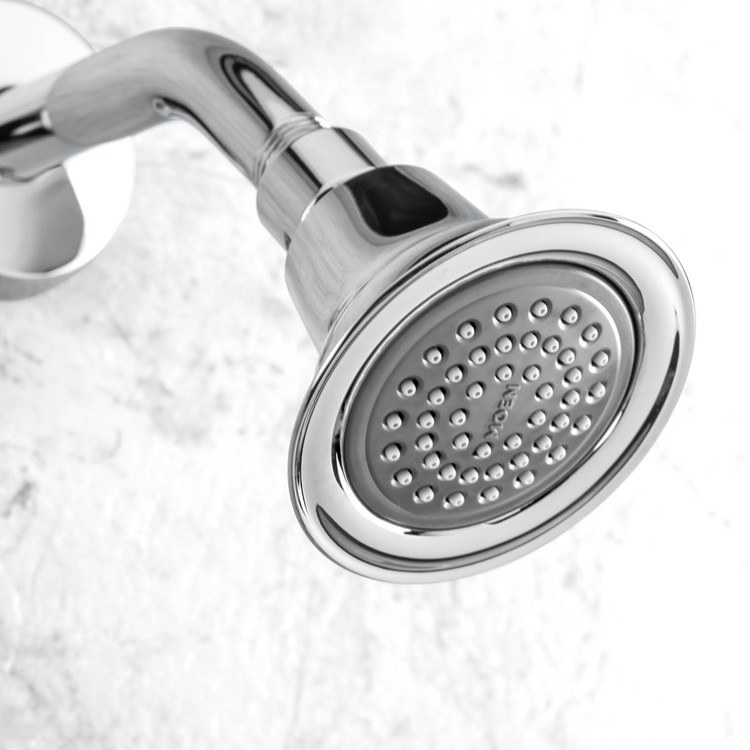

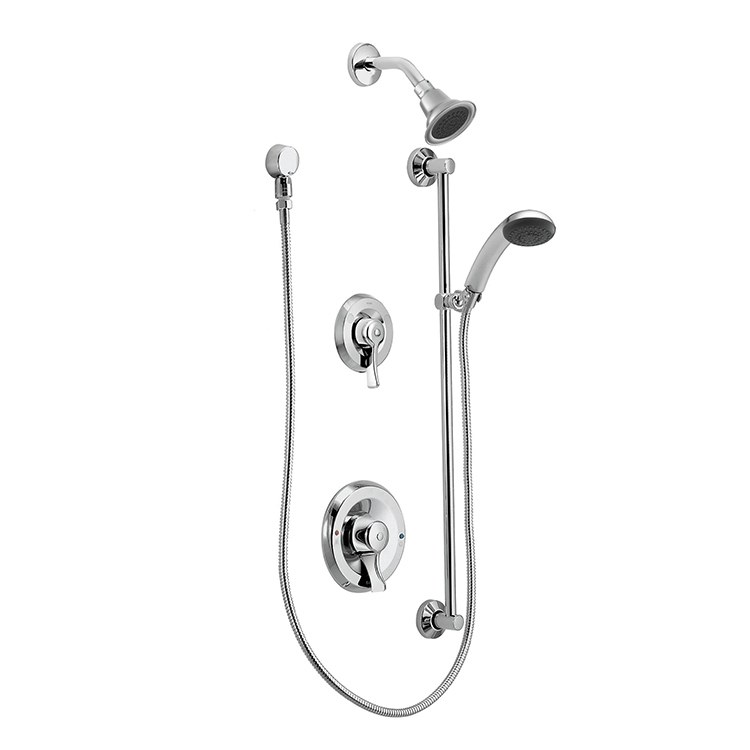

This three-function shower and handshower system includes a Posi-Temp pressure balancing valve trim with 1/4 turn stops, a three-function transfer valve with 1/2" CC connections, a handshower with non-positive pause, a 30" slide bar, a drop ell, 69" metal shower hose, a single-function showerhead, a shower arm, and vandal-resistant screws for commercial applications.

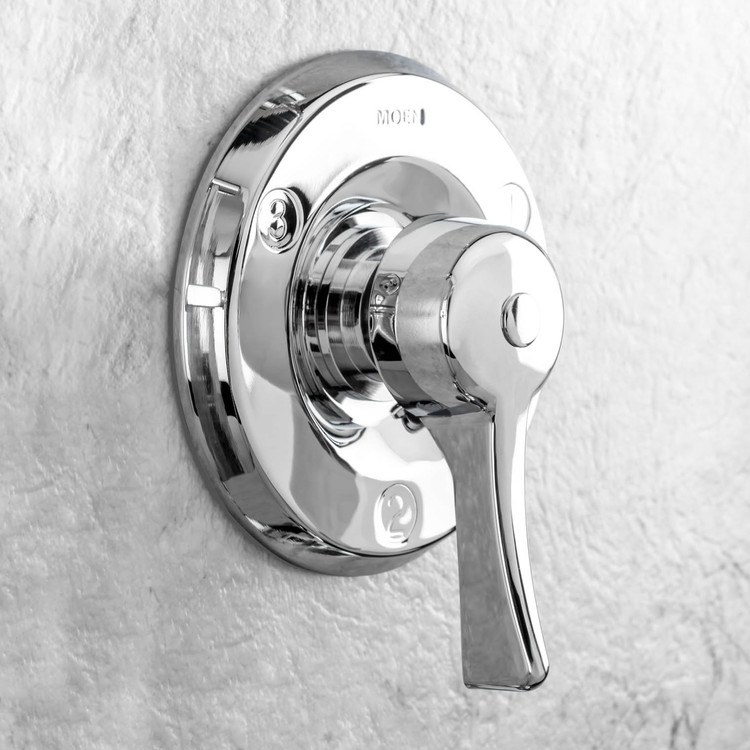

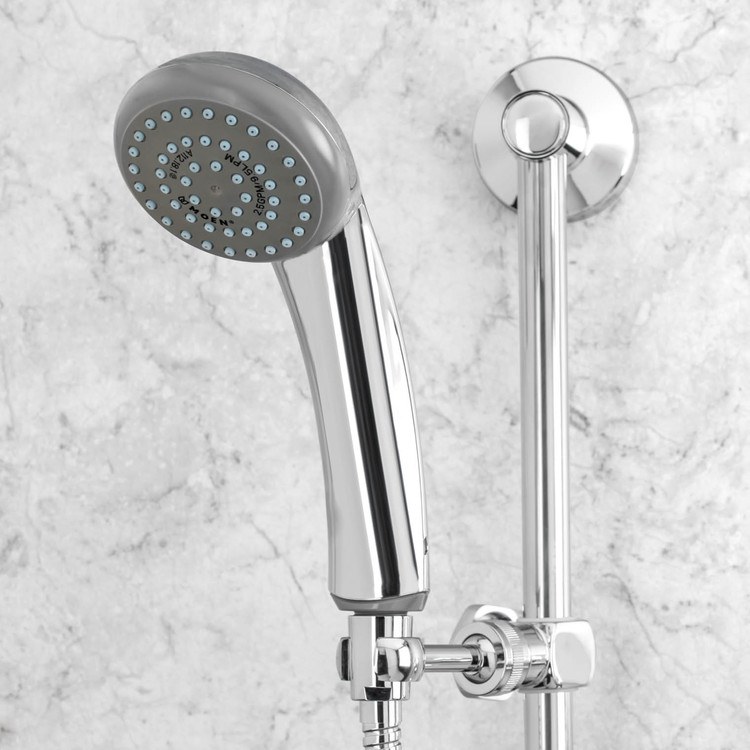

The temperature handle operates counterclockwise through a 270-degree arc with off at 6 o'clock, and the maximum hot at the 9 o'clock position, adjustable temperature limit stop, and a pressure balancing mechanism that maintains a selected discharge temperature to +/- 2 degrees. The 8-1/8" handshower has a 3-5/16" diameter spray face with quick-clean nozzles.

• 2.5 gpm flow rate
• Transfer valve operates three distinct functions
• Pressure balancing mechanism maintains selected temperature
• 1222HD brass cartridge design in temperature control valve accommodates back to back installations
• Brass construction with stainless steel materials
• Ceramic disc cartridge in transfer valve
• Accommodates back-to-back installation
