Efficient Designs for Heavy-Use Applications.

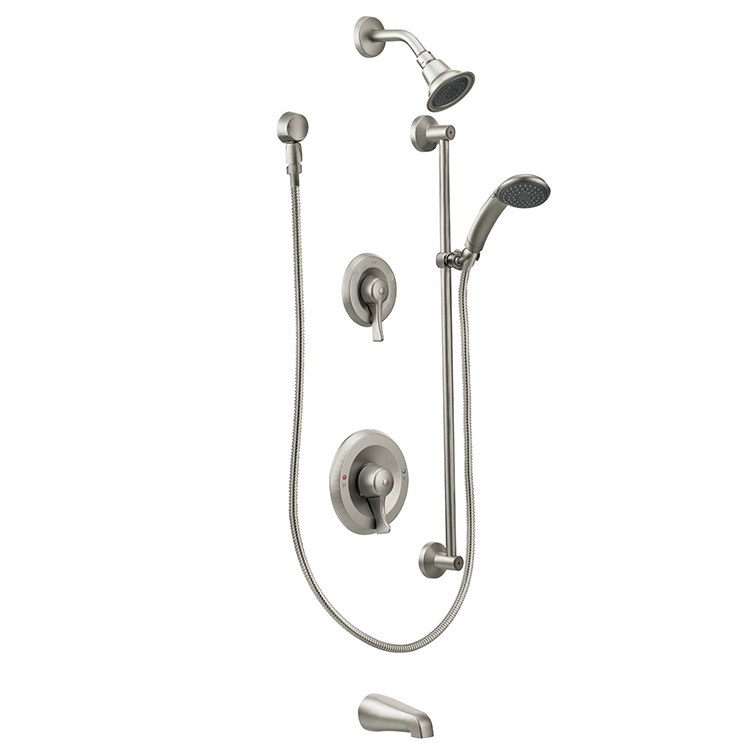

This WaterSense-certified, three-function shower and handshower system includes a Posi-Temp pressure balancing valve trim with 1/4 turn stops, a three-function transfer valve with 1/2" CC connections, a handshower with non-positive pause, a 30" slide bar, a drop ell, 69" metal shower hose, a single-function showerhead, a shower arm, and vandal-resistant screws for commercial applications.
The temperature handle operates counterclockwise through a 270-degree arc with off at 6 o'clock, and the maximum hot at the 9 o'clock position, adjustable temperature limit stop, and a pressure balancing mechanism that maintains a selected discharge temperature to +/- 2 degrees. The 8-1/8" handshower has a 3-5/16" diameter spray face with quick-clean nozzles.
- 1.5 gpm flow rate
- Transfer valve operates three distinct functions
- Pressure balancing mechanism maintains selected temperature
- 1222HD brass cartridge design in temperature control valve accommodates back to back installations
- Brass construction with stainless steel materials
- Ceramic disc cartridge in transfer valve
- Accommodates back-to-back installation
- Requires Posi-Temp and transfer valve rough-in valves sold separately
