Shower Controls with Mobile Connectivity.

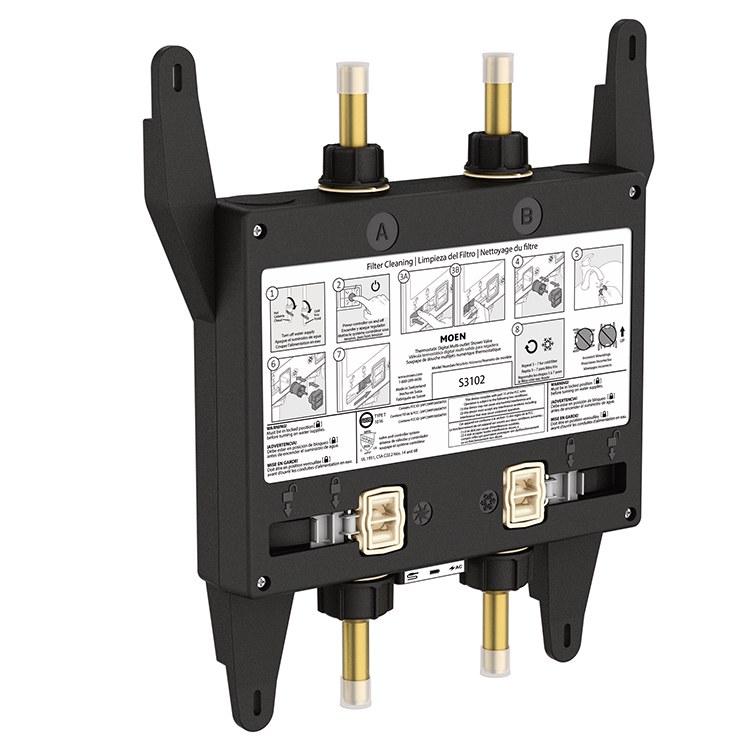

This U by Moen two-outlet digital thermostatic shower rough-in valve is designed for use with the TS3302TB digital shower controller. Allows users to customize and control the temperature, time, and flow of the shower. A smart phone app available for iOS and Android provides increased user personalization of the shower.
The valve is set with a factory default maximum temperature setting of 115 degrees F (46 degrees C) with adjustability through the app up to 120 degrees F (49 degrees C). Designed to deliver 9 gpm (34 L/min) at 45 psi unrestricted total flow through all outlets and 6 gpm (22.7 L/min) at 45 psi unrestricted on any one outlet. Flow rates are applicable when installed on a pressure balanced dedicated supply.
- Must be used with the TS3302TB digital shower controller
- 1/2" CC inlet connections and 1/2" CC outlet connections
- Valve must be installed in an area that has an access panel
- GFCI electrical outlet with continuous power (120V/60Hz) required
- Water supply minimum incoming pressure of 20 psi
Ships directly to your store or location
