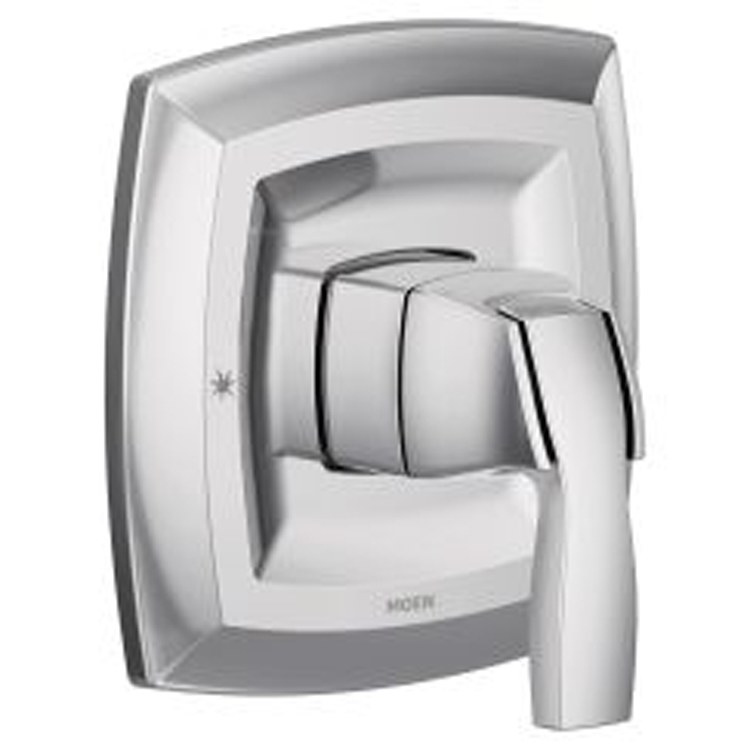

Valve Uses ADA-Compliant Lever Handle
From Moen's Voss Collection, this valve trim measures 6-1/4" wide by 6-1/4" high and has an ADA-compliant lever handle with a temperature indicator on the escutcheon. The variable volume control handle lifts in a 0- to 25-degree arc. The pressure balancing mechanism maintains the selected discharge temperature to +/- 2 degrees F. This model includes an M-CORE 3-Series cartridge.
- Valve trim dimensions: 6-1/4" W x 6-1/4" H
- Metal construction
- ADA-compliant lever style handle with temperature indicator on escutcheon
- Variable volume control handle is lifted in a 0- to 25-degree arc
- Temperature operates through a 110-degree arc of handle rotation - full cold to full hot
- Adjustable temperature limit stop to control max. hot water temperature
- Pressure balancing mechanism maintains selected discharge temperature to +/- 2 degrees F
- M-CORE 3-Series cartridge included
- Limited lifetime warranty
