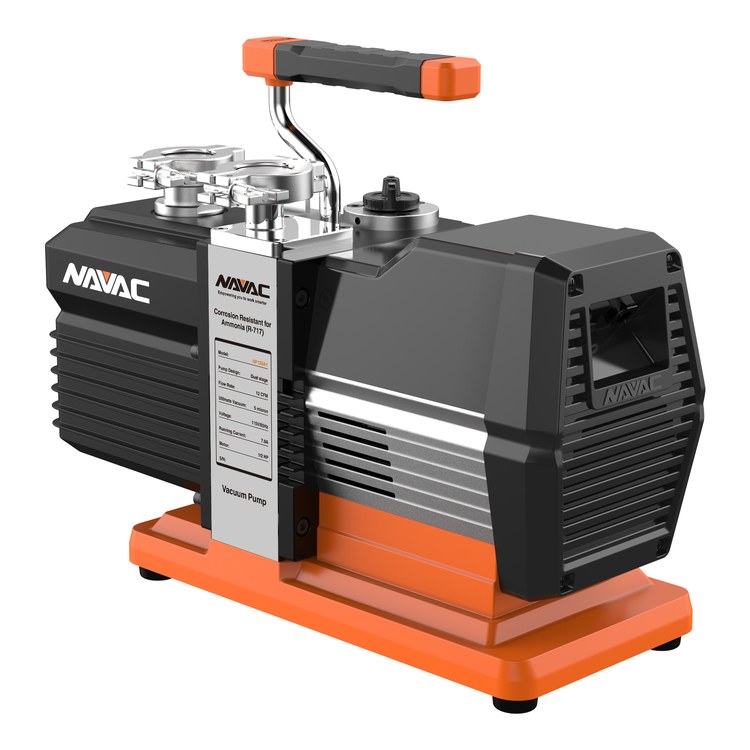

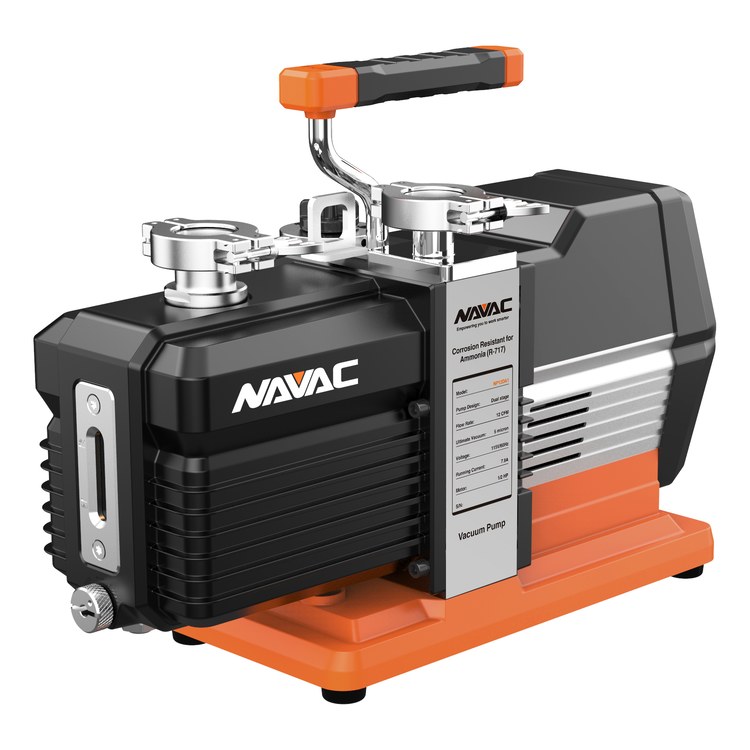

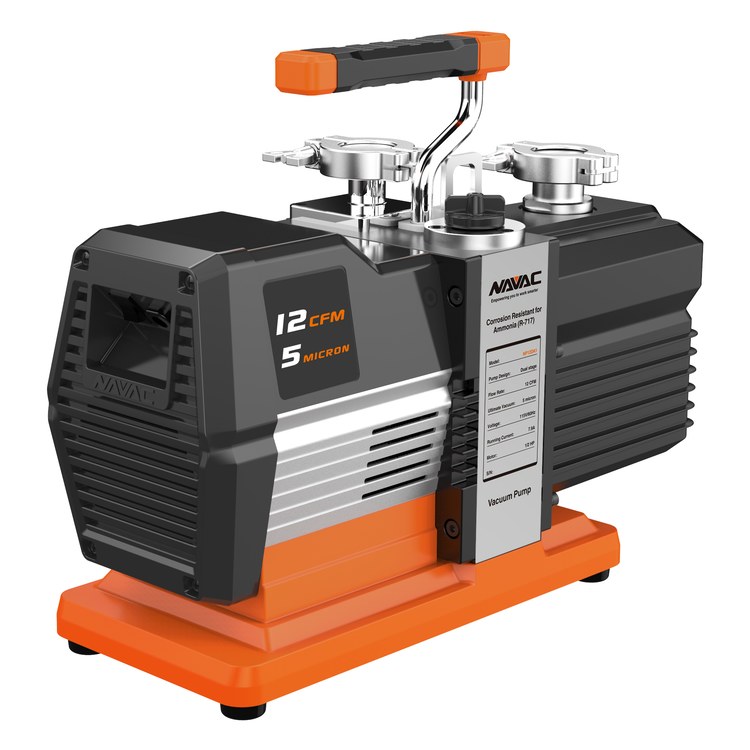

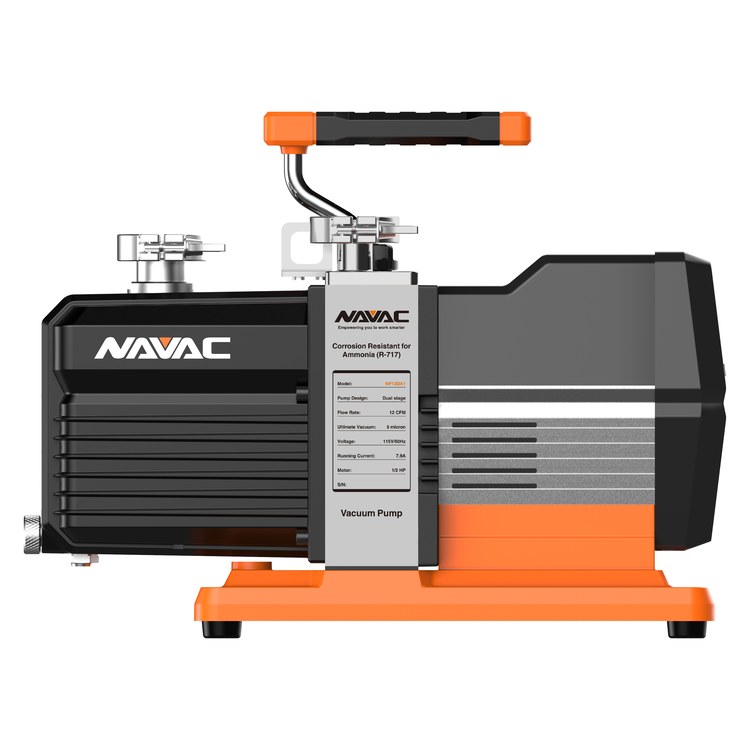

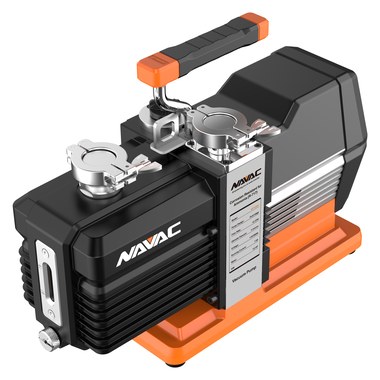

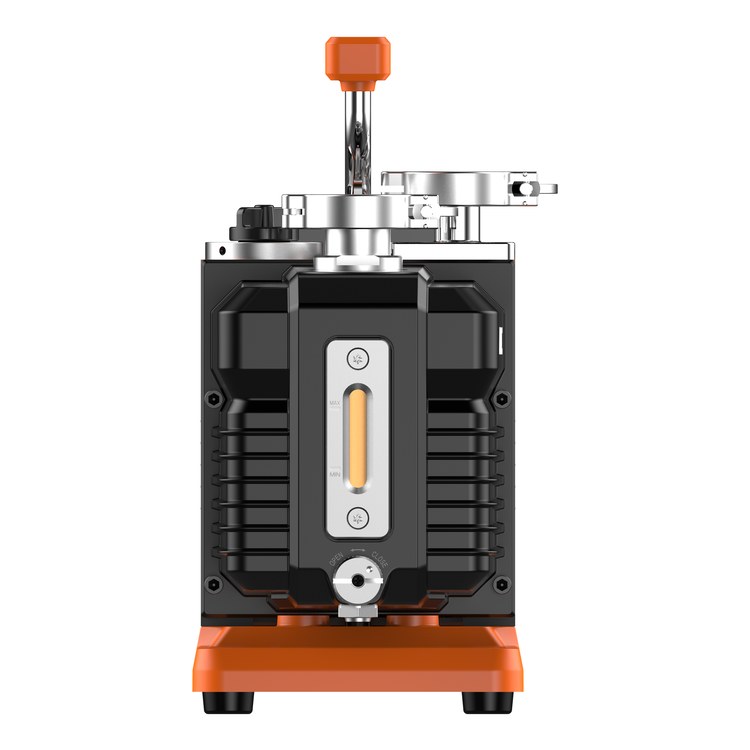

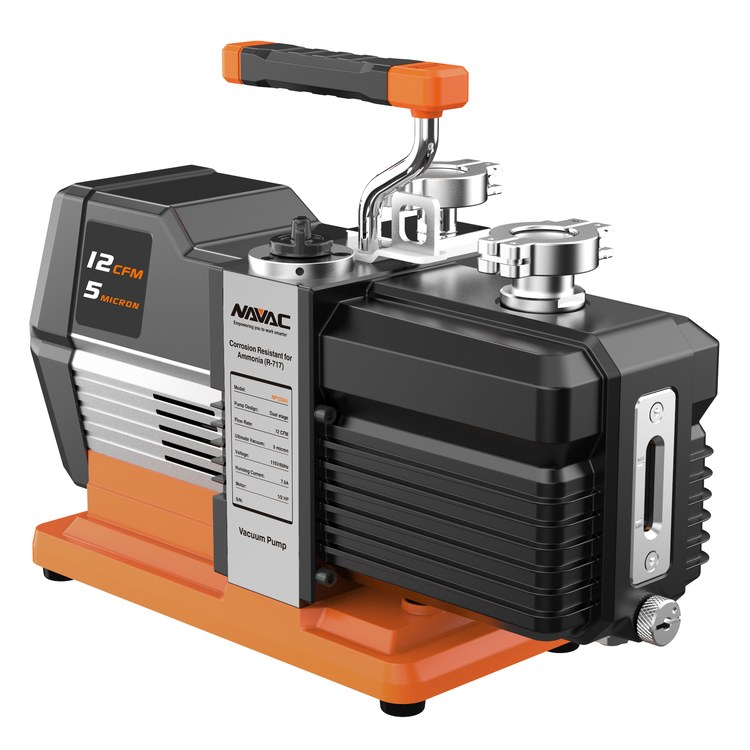

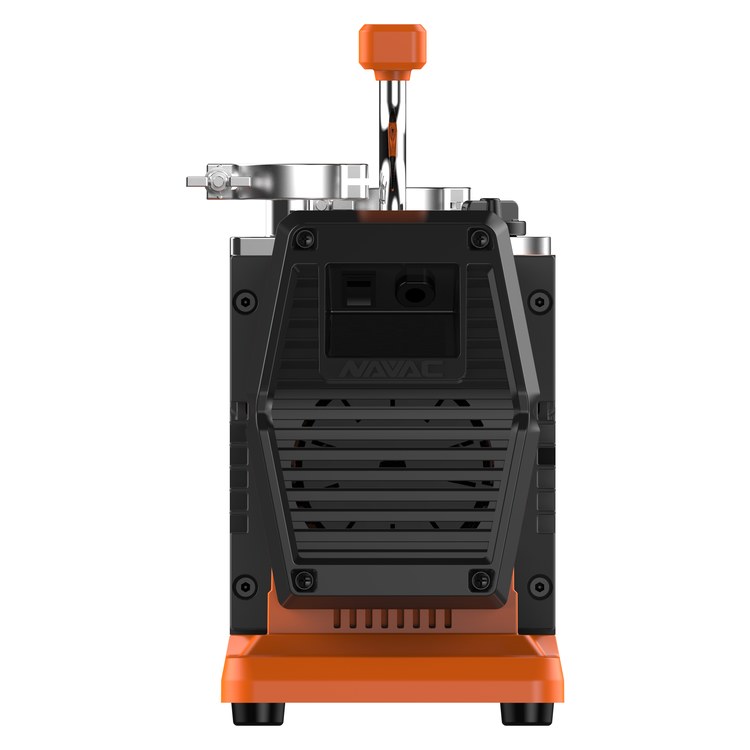

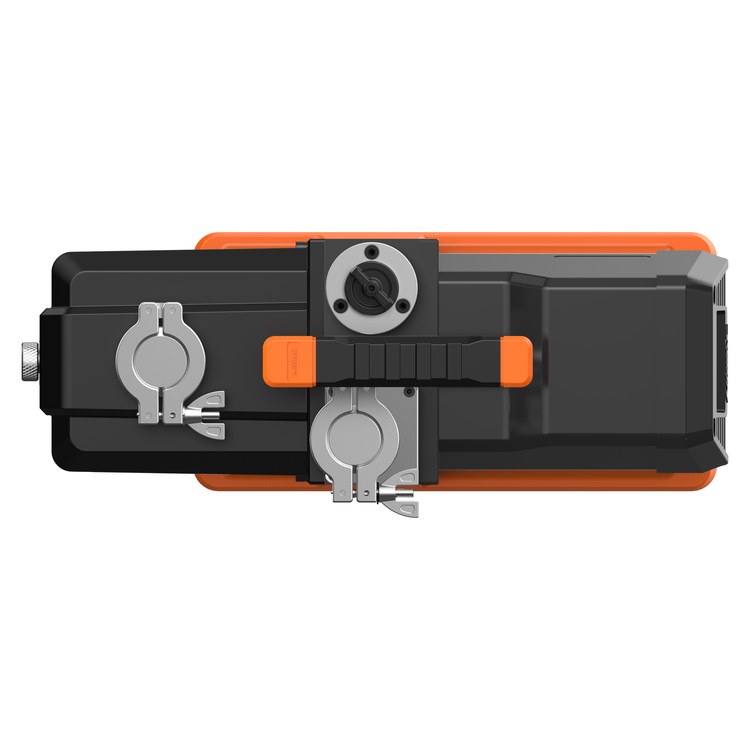

The NP12DA1 Vacuum Pump - Robust and Corrosion Resistant.
With industrial-grade technology, NP12DA1 solves the problems of long-time evacuation, inadequate vacuum level in the service for large commercial refrigeration or central AC systems. The special design with corrosion-resistant pump parts and stainless steel inlet port makes the pump suitable for ammonia (R-717). The dual-stage rotary vane pump and inverter motor lead to faster evacuation and a deeper vacuum. Integrate pump structure and built-in oil backflow prevention assure superior performance and reliability.
- Power Supply: 115 volts/60 hertz
- Flow Rate: 12 CFM
- Ultimate Vacuum: 5 microns
- Pump Design: Dual stage
- Motor Power: 1/2 HP
- Inlet and Exhaust Flange: K25
- Oil Capacity: 28 oz
- Dimensions: 16.3" L x 6" W x 12.1" H
- Weight: 32 lbs
- 1-year warranty
