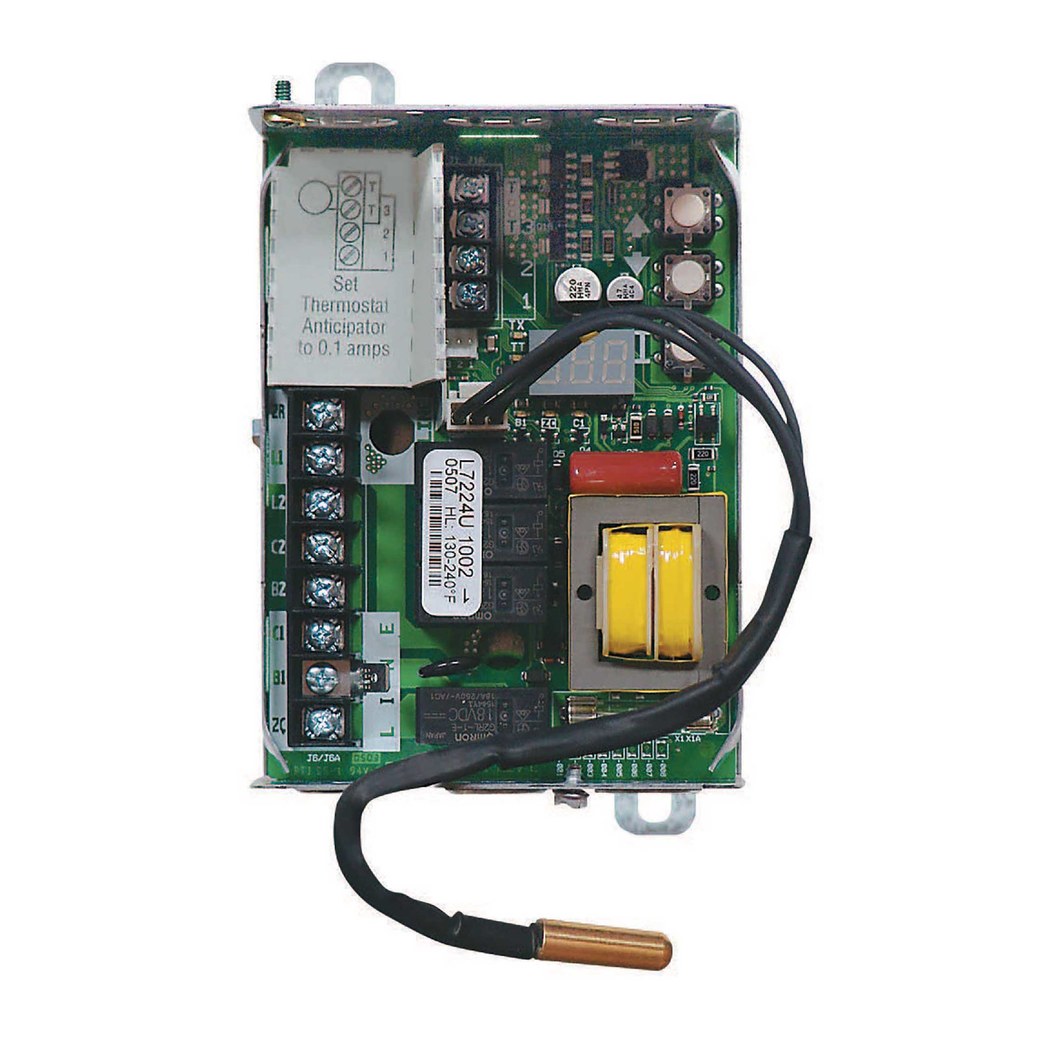

The L7224U Oil Electronic Aquastat Controller provides electronic temperature sensing in a UL limit-rated controller, controls the circulator, oil burner and boiler temperature, and provides status, LED diagnostic and EnviroCOM communication.
| Brand | Resideo |
|---|---|
| Product Type | Universal Oil |
| Temperature | 130 to 240DEG F |
| Differential Temperature | 5 to 20DEG F High Limit/10 to 25DEG F Low Limit |
| Mounting | Horizontal/Vertical/Well |
| Application | Regulating Oil Burner and Burner Temperatures |
| Voltage | 120VAC |
| Controller Type | Electronic |
| Length | 2-5/8IN |
| Width | 4-1/4IN |
| Height | 7-1/8IN |
| Shipping Weight | 5.000 LBS |
