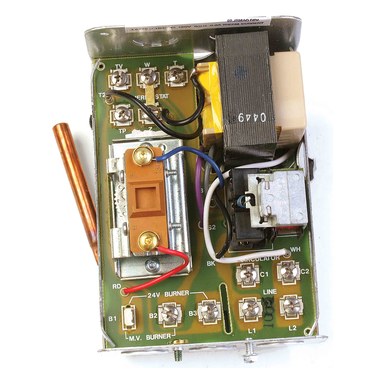

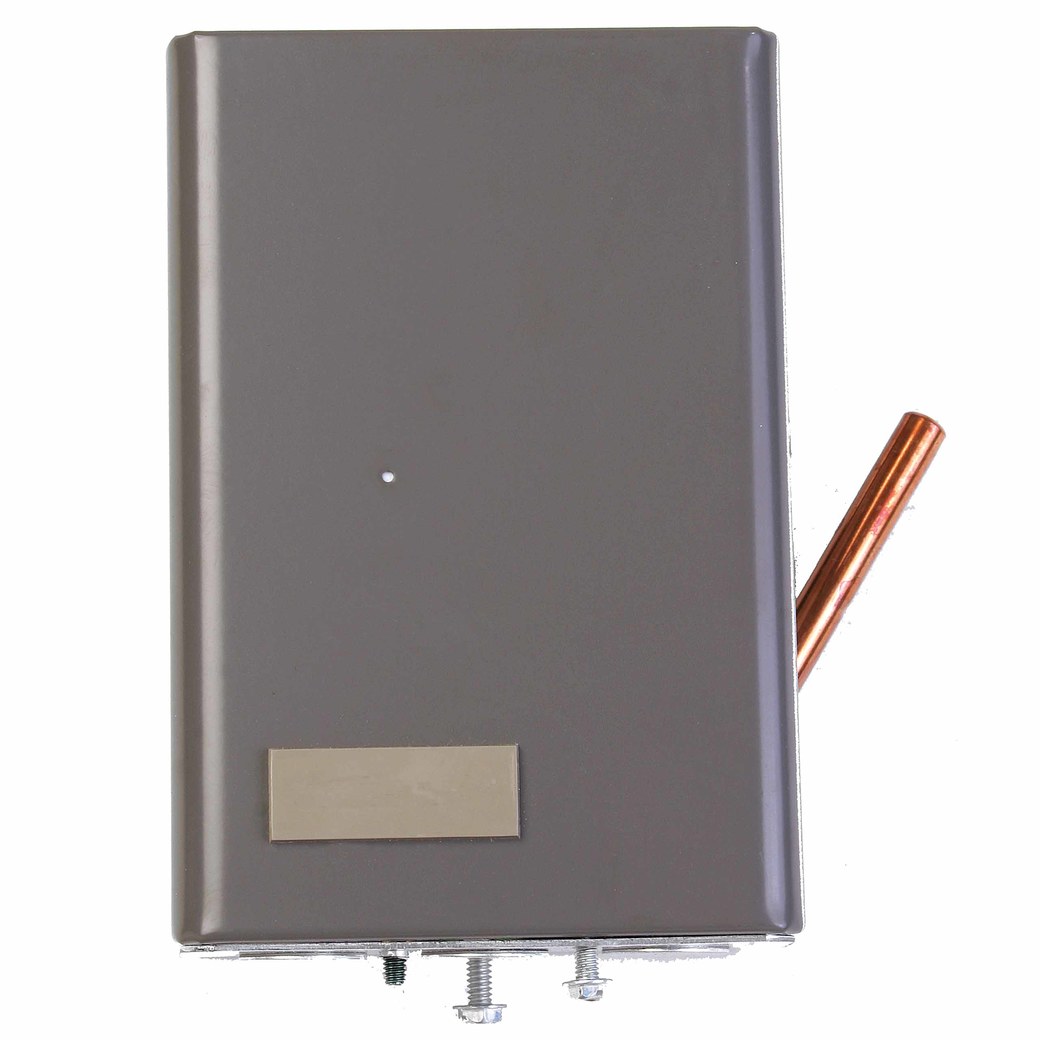

The L8148 Aquastat Relays are immersion type hydronic controllers that combine high limit protection with switching relay control of burner and circulator motors.
| Brand | Resideo |
|---|---|
| Product Type | Relay |
| Temperature | 180 to 240DEG F |
| Differential Temperature | 15DEG F Fixed |
| Mounting | Vertical |
| Application | Hydronic Heating System Protection |
| Insulation Depth | 1-1/2 to 3IN |
| Switching Action | SPST High Limit and Circulator |
| Voltage | 120VAC |
| Controller Type | Immersion |
| Length | 3-1/8IN |
| Width | 4-1/8IN |
| Height | 6-1/8IN |
| Shipping Weight | 5.000 LBS |
