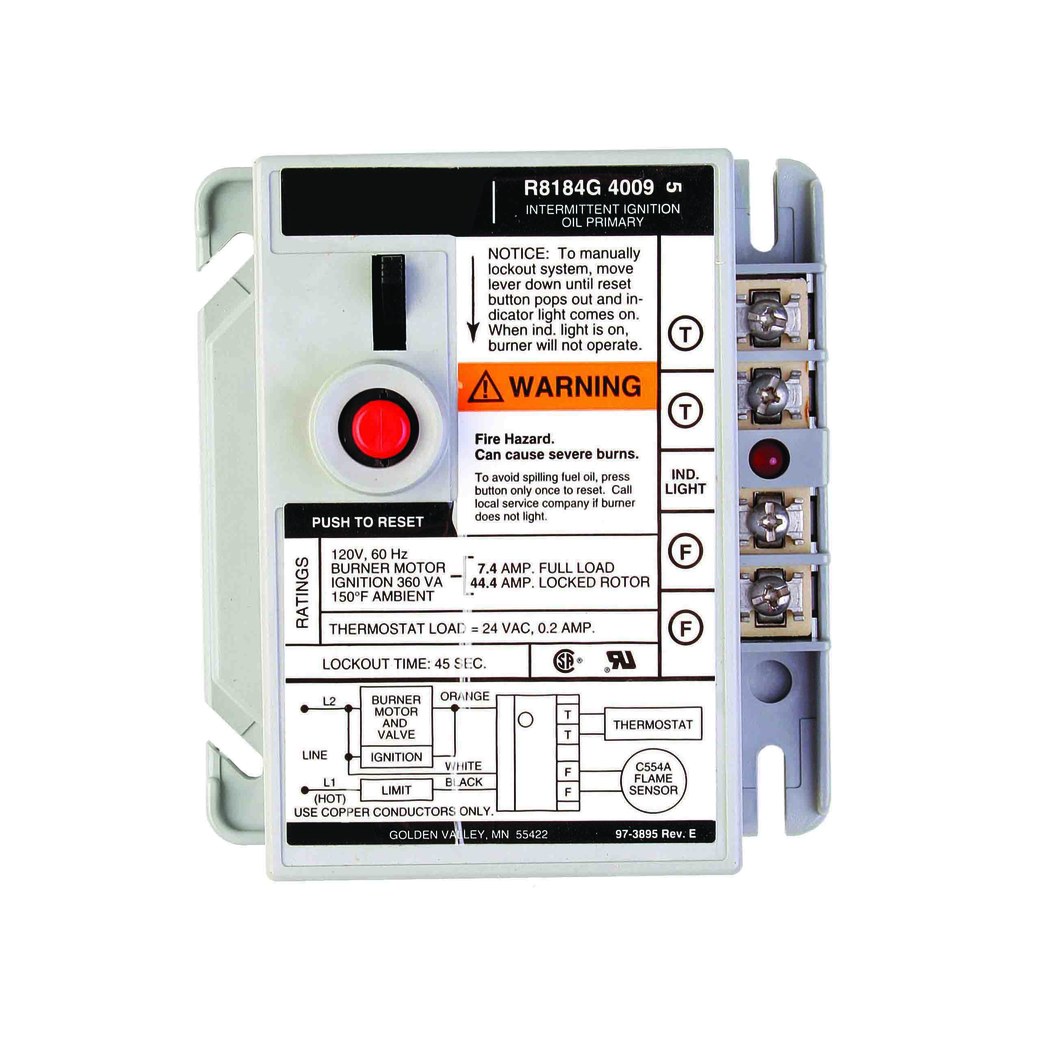

Burner Control Oil Relay Primary with Lockout LED on Terminal Strip Indicates System Lockout for 4x4 Inch Junction Box or Direct Mount on Burner Housing R8184G4009/U

The TRADELINE intermittent ignition oil primary control operates the oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat from the thermostat. Through a C554 Cad Cell Flame Sensor, the R8184 monitors the burner flame and shuts down the system on ignition failure or on flame failure during the run cycle. A light emitting diode (LED) on the terminal strip lights when the safety switch opens to provide safety shutdown indication. A manual reset button is provided to reset the safety switch after lockout. For convenience in system maintenance, the safety switch can be manually opened using a lever on the front of the control. Clock thermostats that power the clock through the primary control transformer will lose time during lockout unless backup batteries are installed.

• Provides automatic, no recycling control of an intermittent ignition oil burner system
• Controls oil burner, oil valves (if desired) and the ignition transformer in response to a call for heat
• Solid state flame sensing circuit
• LED on terminal strip indicates system lockout
• Remote lockout indication
• Enclosed safety switch with external reset button
• Manual trip lever opens safety switch for system maintenance
• Mounts on standard 4 x 4 in junction box select models may be mounted directly on burner housing
• C554A cadmium sulfide flame detector and 24 VAC thermostat required
• 22.2 to 44.4 A at 120 to 240 VAC for locked rotor
