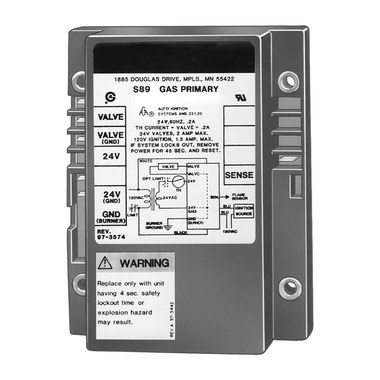

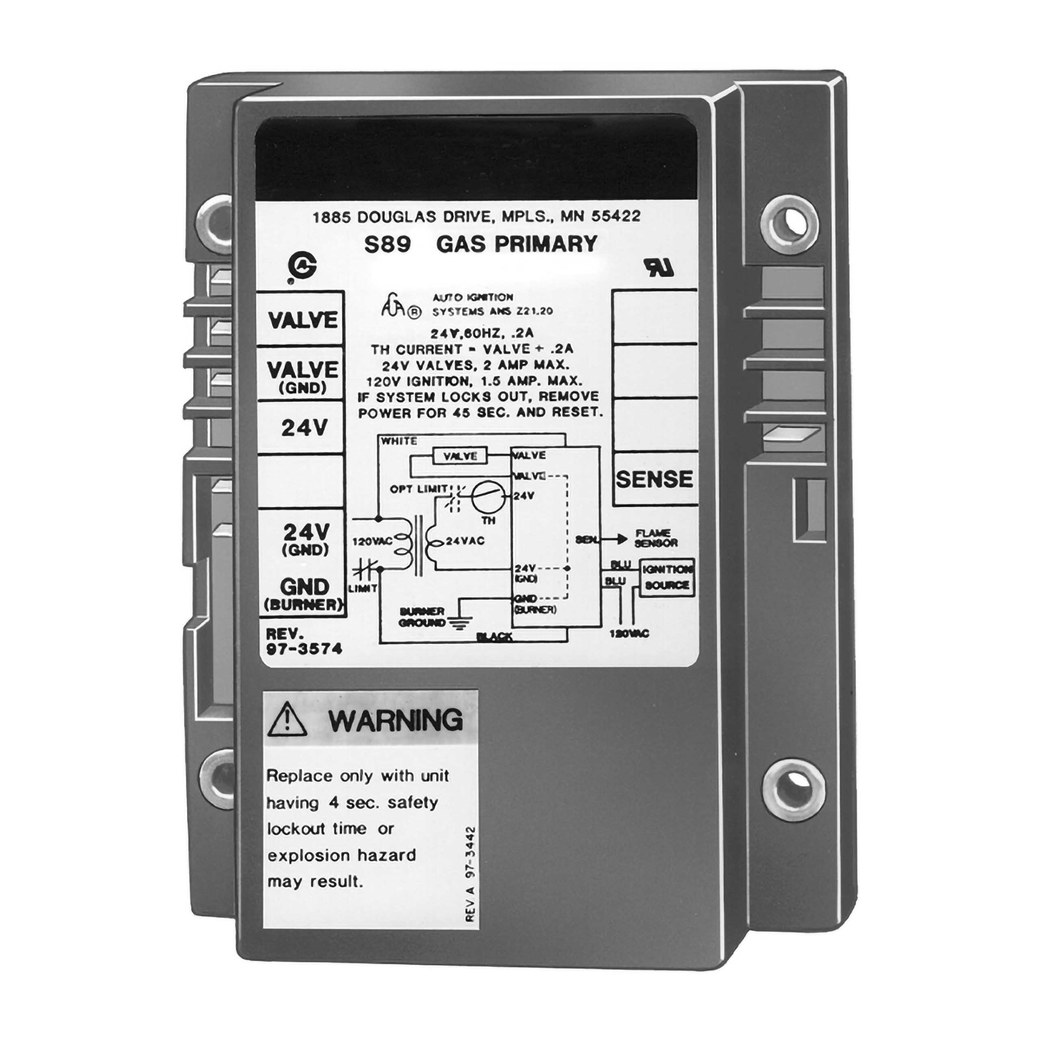

Resideo S89F1098/U

Control Ignition Module 2 Rod Direct Spark with 4 Second Lockout

Authorized Distributor

Account required to order

Important: Licensed Contractor Required for Installation.

This product requires installation by a licensed contractor with appropriate equipment to test and calibrate. Failure to comply with this requirement can result in substantial property damage, injury, and death.

Provide electronic control of direct spark ignition systems used on gas fire furnaces, boilers, and other heating appliance.

  • Control ignition sequence and gas control operation
  • Generate high voltage potential for main burner ignition
  • Lockout after one trial for ignition if main burner fails to ignite
  • Reset from thermostat after lockout
  • 2 sec at 2.5 mA flame failure response time
  • 60 Hz frequency
  • -40 to 175 deg F ambient temperature
  • Single trial for main burner ignition sequence
  • VR8205, VR8305 gas control
  • Two-rod flame sense
  • External (120 VAC powered) high voltage spark generator
  • 1 ignition trials to lockout
  • 0.8 sec max flame failure re-ignition time
  • Use modules (except S87C) with any combination gas control designed for direct spark applications and rated 2.0A or less

BrandResideo
Product TypeIgnition Module 2 Rod Direct Spark with 4 Second Lockout
Temperature-40 to 175DEG F
Length1-15/16IN
Width4-1/16IN
Height5-1/4IN
Shipping Weight3.000 LBS
