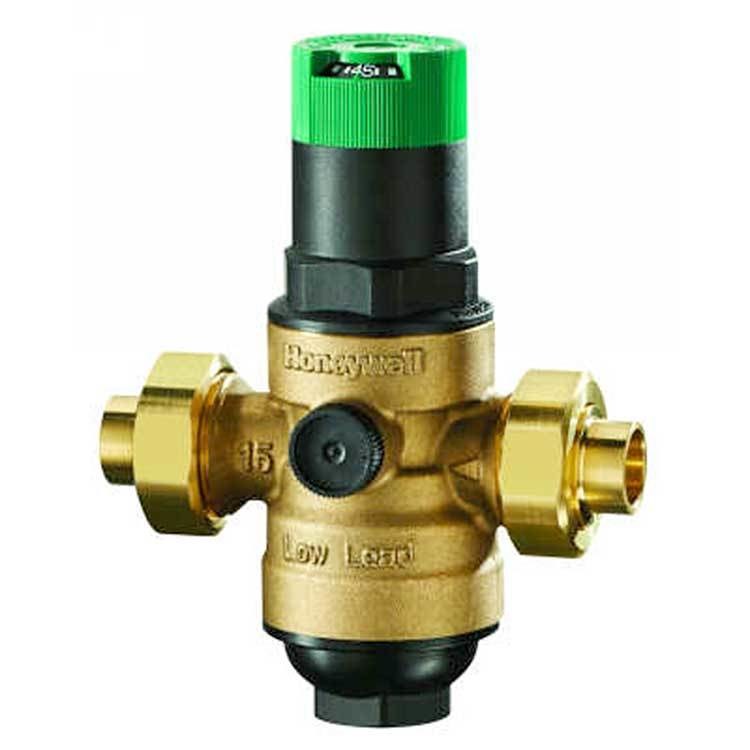

Pressure Regulating Valve

Resideo DS06-104-ST-LF

Pressure Regulating Valve DS06 DialSet 1-1/2 Inch Single Union Sweat Lead Free Bronze

Authorized Distributor

$628.43  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

The Honeywell DS06 Dial Set Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).

  • Built-In Dial-Set- no gauge is needed to install or set static pressure
  • Non-corroding unitized cartridge - contains all working parts and is easily replaceable
  • Install it just about anywhere
  • The internal and external threading allows for use in thread-by-thread, single union or double-union configurations
  • 1/4 in NPT tap accessible from both sides to validate output
  • Built in strainer to simplify maintenance
  • 25 to 90 psi outlet pressure adjustment range
  • Calibrated adjustment dial
  • 10:1 maximum reducing ratio
  • Union fittings: Single-union threaded
  • Internal parts: Stainless steel and engineered plastics
  • Regulator mechanism: Fabric-reinforced diaphragm

BrandResideo
Size1-1/2IN
End ConnectionSingle Union Sweat
MaterialLead Free Bronze
Temperature33-140DEG F
ApplicationPotable Water and Irrigation
Length6-1/2IN
Height11-13/16IN
Shipping Weight10.000 LBS
