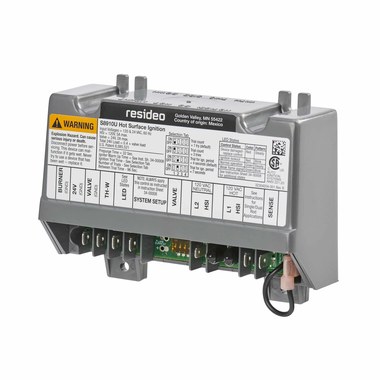

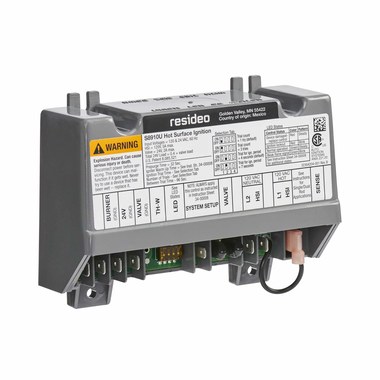

Module Universal Hot Surface Ignition 120 VAC S8910U3000/U

Universal hot surface ignition module replaces multiple field installed hot surface ignition modules supplied by Honeywell, White-Rodgers, Robertshaw and Johnson. Uses a 120 VAC igniter. Includes cross reference, instructions and accessories for easy replacement.

• Replaces over 800 White-Rodgers, Robertshaw and Honeywell hot surface ignition models
• For 120 VAC (up to 5 A) surface igniter (Norton 201/271 or equivalent)
• S8910U 3000 series has LED status indicator and microammeter ports for easy trouble shooting
• For local (single rod) or remote (dual rod) rectification type flame sensing
• Contains easy-to-use cross reference and instructions plus the accessories required to replace the existing hot surface ignition module
• Provides one or three ignition trials (four-second or seven-second trials) per call for heat
• Field selectable number of ignition trials and trial time based on unit being replaced
• Igniter warm up time: 7 (12 sec and third trial), 17 (27 sec and third trial), 34 or 45 sec
• 24 V control at 60 Hz
