Thermopile Generator

Resideo Q313A1139/U

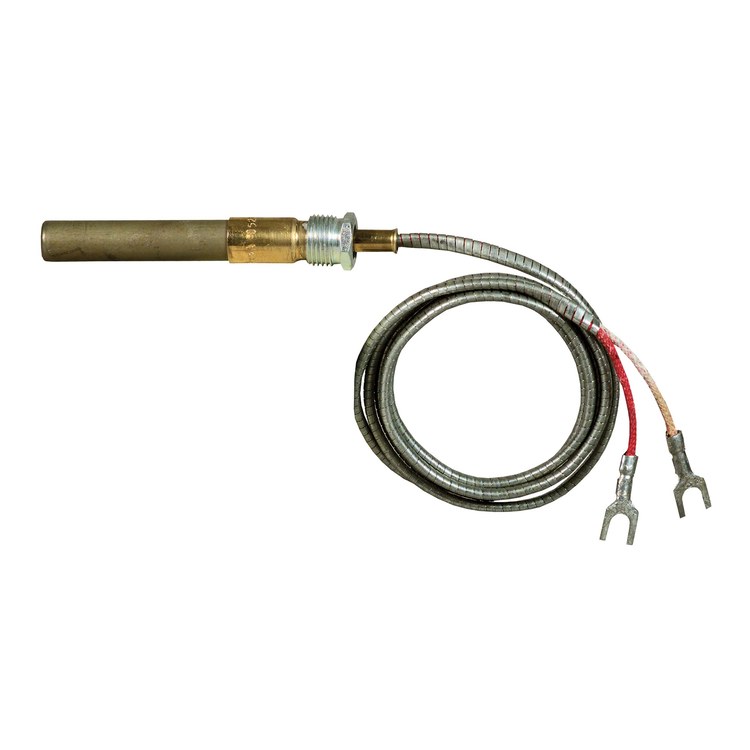

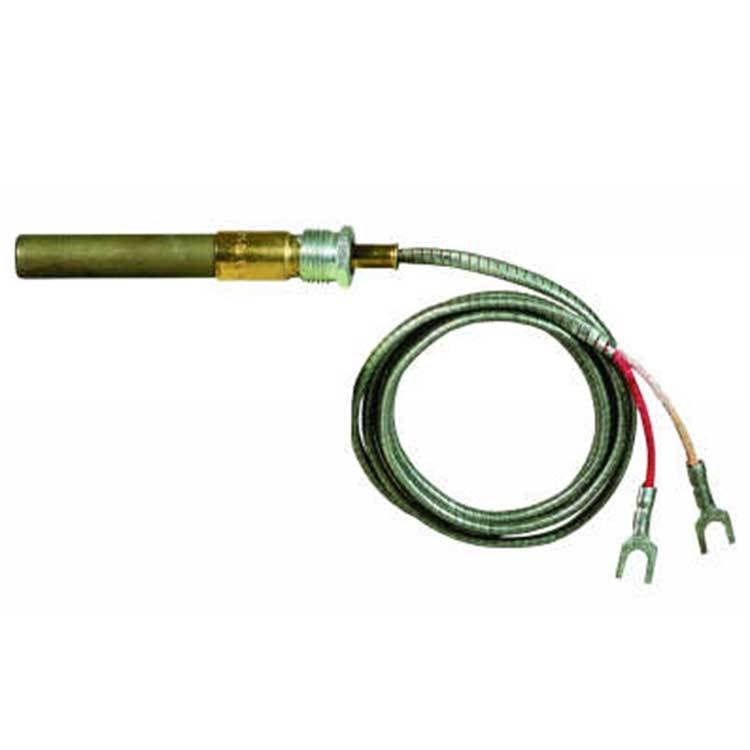

Resideo Q313A1139/U Thermopile Generator Tradeline LP/Natural Gas 0.75 Volt Spade Terminal with 35IN Lead 780-1400 Degrees Fahrenheit

Authorized Distributor

Resideo
Product #: 83335
Product Code: RSDQ313A1139/U
Add to list
$71.25  / ea
Qty
2 at Presque Isle, ME. 165 available to ship. Check inventory by location.
Specification Sheet
Installation Manual

Q313 Thermopile Generator contains multiple thermocouples connected in series to provide 750mV. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.

  • Push-in clip, split nut or adapter assembly available (depending on model) for easy pilot burner installation
  • Spade or quick connect terminals available for millivoltage gas control connections
  • 600 to 750 mV open circuit output
  • 760 deg C hot junction/416 deg C cold junction temperature
  • 2.89 ohm resistance

BrandResideo
Product TypeLP/Natural Gas
Voltage0.75V
Junction TypeSpade Terminal with 35IN Lead
Temperature780-1400DEG F
MountingPush-In Clip
Connection DetailsSpade Terminals
ApplicationQ314/Q324/Q327/Q377/Q397/Q382 Pilot Burners
Shipping Weight3.000 LBS
