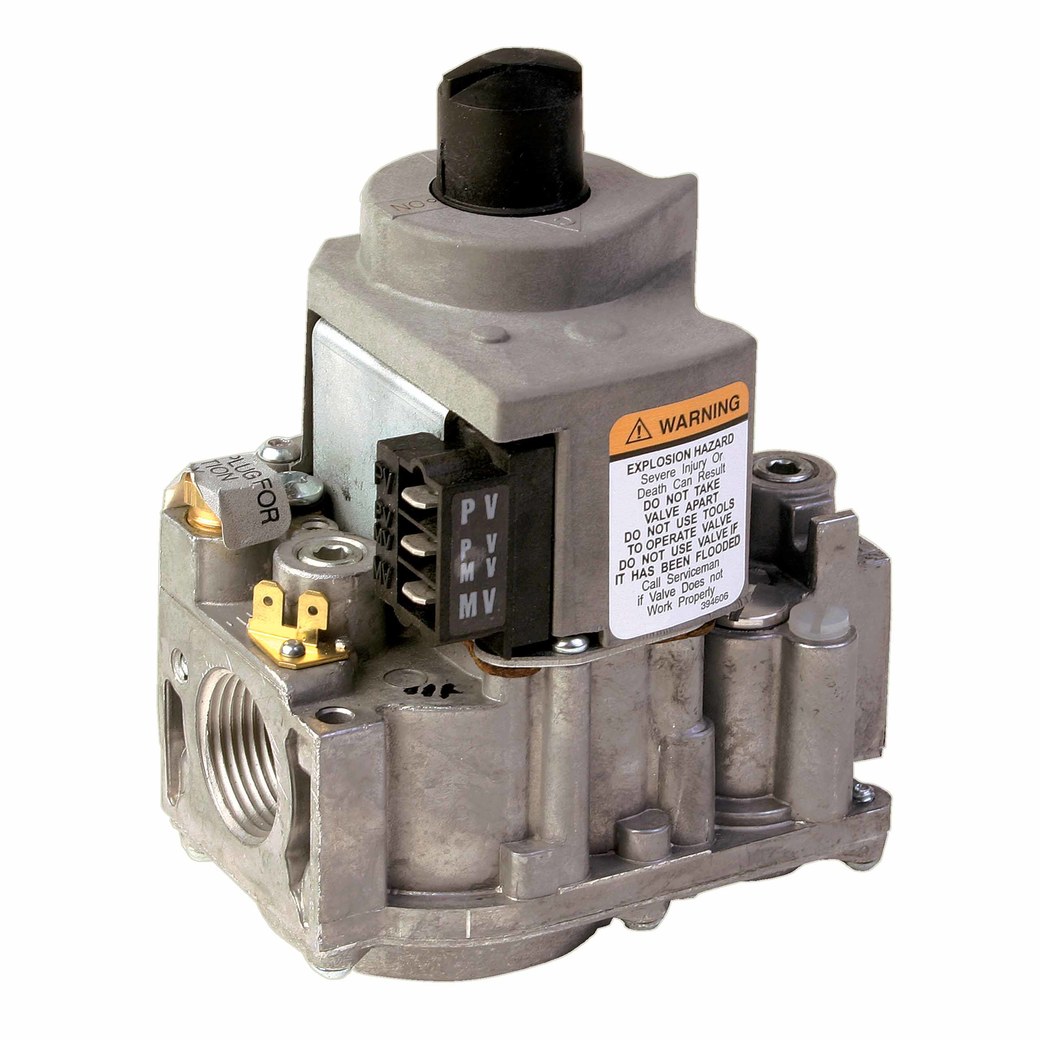

Gas Valve VR8245 Standard Opening Intermittent/Direct Ignition 1/2 Inch NPT 1/2 Pounds per Square Inch -40 to 175 Degrees Fahrenheit

Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 VAC, gas-fired appliances, with capacities from 20 to 200 cfh (VR8245M) or 30 to 415 cfh (VR8345M).

• Controls include manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter
• Replaces many IP, HSI or DSI gas control
• For use with natural or manufactured gas or LP gas
• Includes converter kit to adapt from natural to LP gas
• Compact design
• All adjustments and wiring connections accessible from top of control
• 4 in swing radius allows easy rotation into position inside the tightest furnace vestibules
• Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper
• Internal inlet screen blocks contaminants in gas line from entering valve
• Straight-through body pattern
• 0 to 90 deg in any direction from the upright position of the gas control knob mounting
• 3-1/2 in WC pressure regulator setting
• Standard opening gas vavle
