Powered Damper Design Delivers More Heat to the Water and Less Out the Chimney.
The energy-efficient Professional Classic Plus Powered Damper gas water heaters meet or exceed the latest Energy Star requirements. The 24-volt powered flue damper is positioned atop the unit. It opens and closes automatically in response to gas-burner activity. When the combustion stops, it signals the damper to close, trapping the heat inside the flue and delivering more heat to the water.

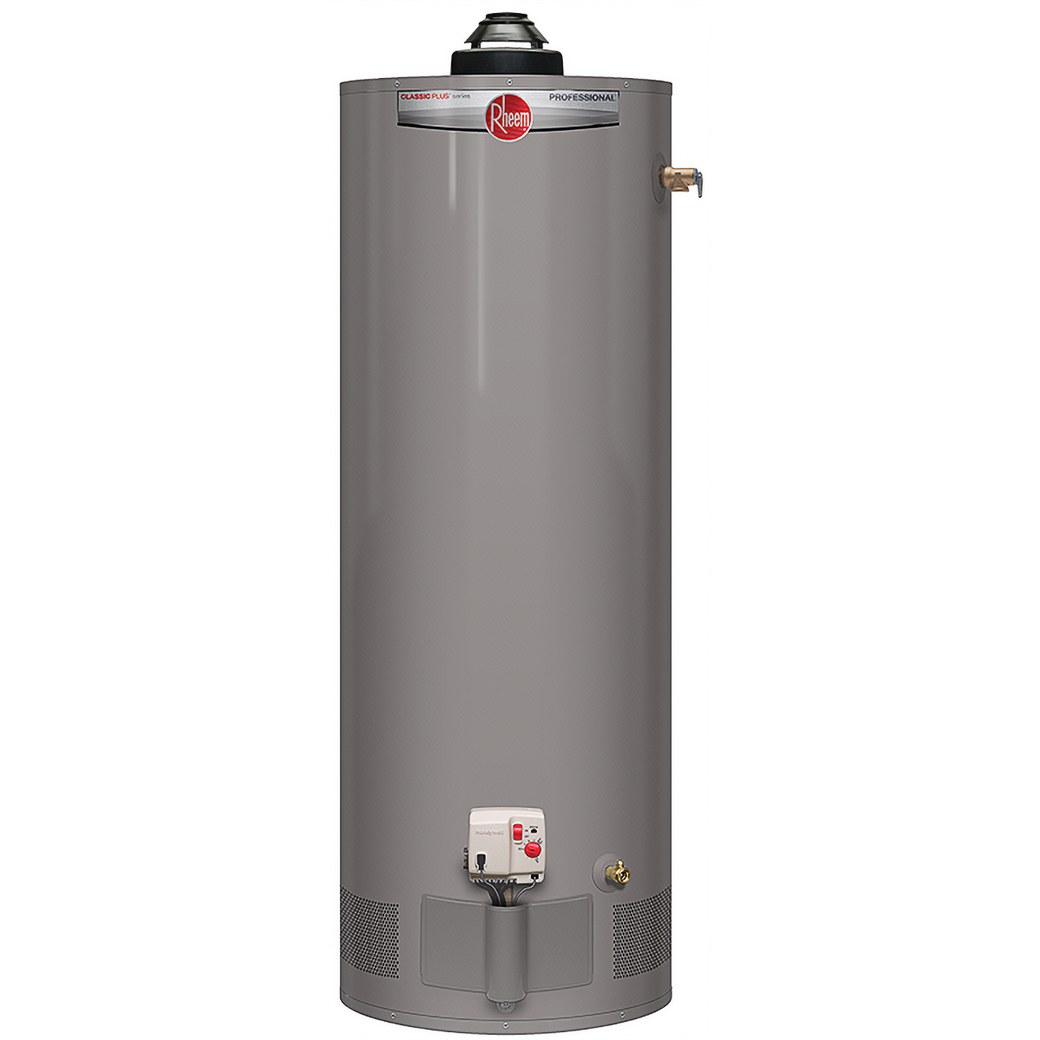

This Classic Plus 38-gallon tall residential water heat provides 40,000 BTU/h heating capacity and has an eco-friendly, low NOx burner. Its self-diagnostic system offers improved monitoring and service, and its Guardian System offers additional safety with an exclusive air/fuel shut-off device that disables the heater if flammable vapor accumulation is detected. The unit is also certified for both efficient potable water and space heating.
- Water capacity: 38 gallons
- Maximum heating capacity: 40,000 BTU/h
- FHR: 66 gallons
- Energy efficiency: 0.68 UEF
- Recovery rate: 40.4 GPH at a 90 degree F rise
- Energy Star rated
- Electronic gas control for improved monitoring and service
- Eco-friendly burner, low NOx design meets 40 ng/J NOx requirements
- 24 VAC flue damper, 110 VAC outlet required
- Includes 19-foot cord, 3-prong plug
- Standard Cat. I, double-wall, B-vent, 3" (4" adaptor included)
- Exclusive air/fuel shut-off device
- Maintenance free - no filter to clean
- Guardian System disables the heater in the presence of flammable vapor accumulation
- Premium-grade anode rod provides long-lasting tank protection
