Water Heater

Rheem GHE100SU-300ALP

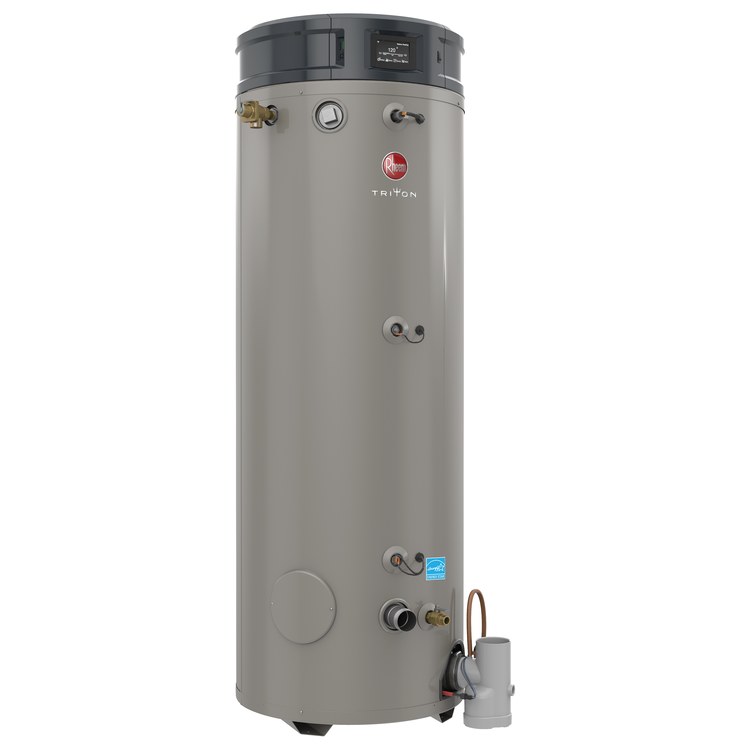

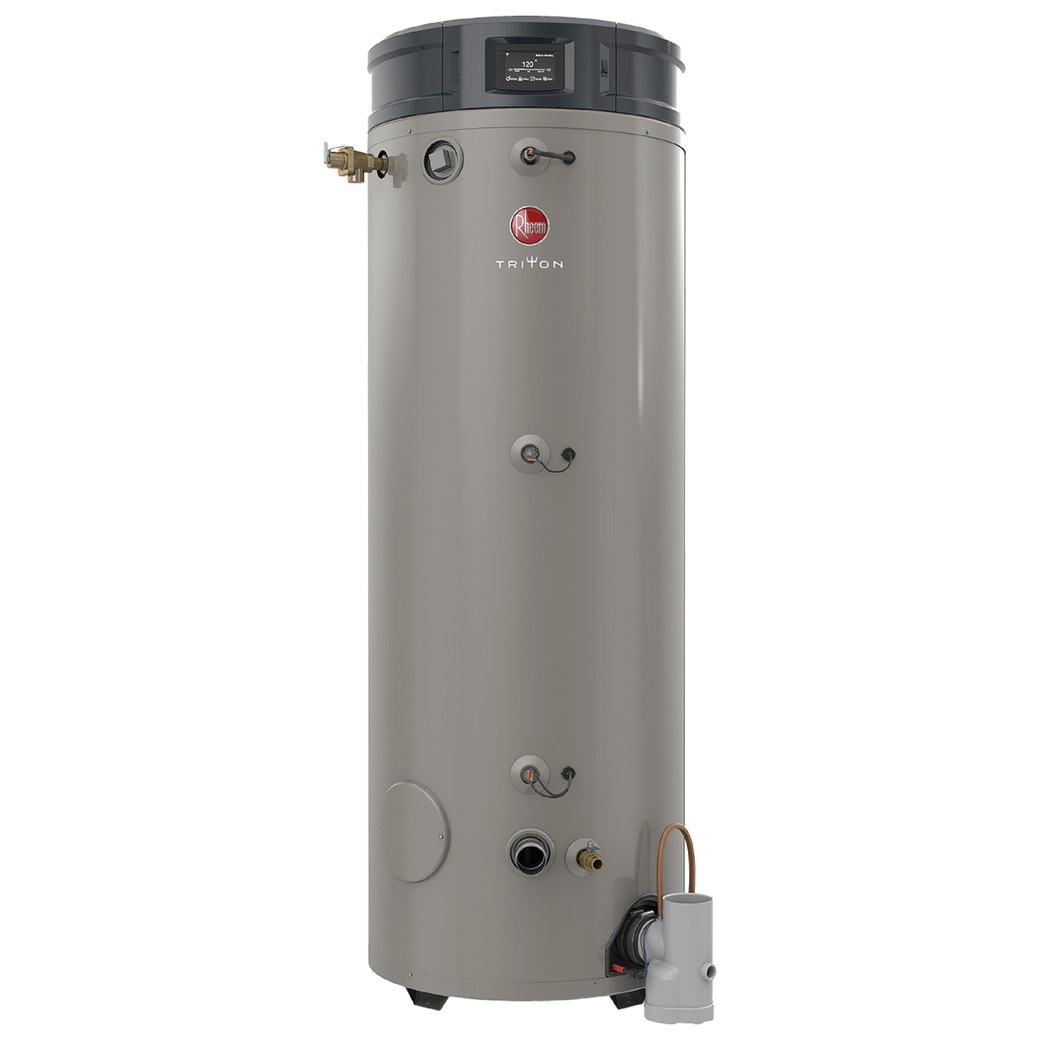

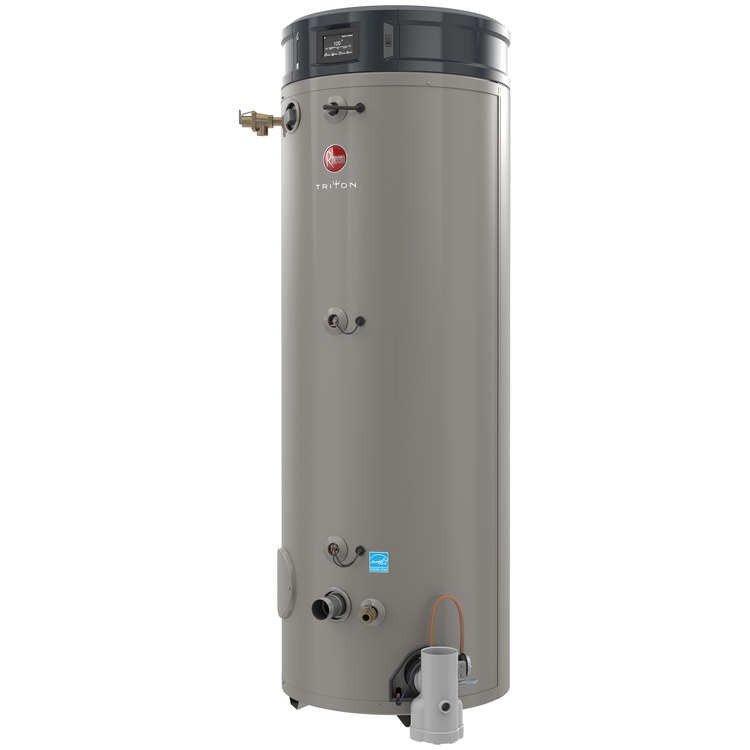

Triton Heavy-Duty ASME Commercial 100-Gallon 300k BTU Propane Gas Water Heater RHE686103

Authorized Distributor

Account required to order

Important: Licensed Contractor Required for Installation.

This product requires installation by a licensed contractor with appropriate equipment to test and calibrate. Failure to comply with this requirement can result in substantial property damage, injury, and death.

The Most Intelligent, High-Efficiency Commercial Gas Water Heater in the Market

Triton commercial gas water heaters are the most accurate, all-inclusive leak detection and prevention system in the market. This Rheem Triton heavy-duty SU propane gas commercial water heater has a 100-gallon capacity and 300,000 BTU/h heating capacity. Larger and more robust than residential units, this ASME-rated heater is built to withstand more frequent use.

Installation is made easy with multiple water connections, flexible venting options, and built-in condensate neutralizer - eliminating need to rework water lines. Integrated WiFi technology provides performance updates and alerts via mobile device to eliminate emergencies and downtime including scheduling, reporting, preventative maintenance alerts and the ability to detect and prevent water heater problems.
  • Water capacity: 100 gallons
  • Maximum heating capacity: 300,000 BTU/h
  • LeakSense: Intelligent leak detection system detect leaks as small as a grain of sand and provides real-time notifications that warn you before it becomes an emergency
  • EcoNet Smart Monitoring Technology with Integrated WiFi: Rheem Exclusive! Provides performance updates and alerts via both mobile device and full-color LCD display
  • Systematic Health Checks: Ongoing self-monitoring of Triton's most vital components and alerts of potential issues
  • Preventive Maintenance Alerts: Maintenance reminders help to extend life of the tank
  • Multiple Connection Points: Multiple water connections at the top, side, and bottom of the unit simplify installation for replacement of any model
  • Variety of Flexible Venting Options: Polypropylene, PVC, CPVC, InnoFlue Flex Vent, and ABS materials, venting 2", 3", 4" and 6" diameters
  • Built-In Condensate Neutralizer: Reduces water acidity for safe drainage
  • Triple Pass Heat Exchanger: Constructed with premium porcelain coated ASME-grade steel to minimize rust and corrosion for extended tank life and maximum thermal efficiency
  • Advanced Power Anodes: Self-adjusting, non-sacrificial power anodes provide systematic monitoring of anode health and remaining tank life
  • Full Modulation: Maximizes energy savings by optimizing BTU input for specific water heating demand
  • Scheduling Capability: Adjust to heat water only during peak operating hours when your business needs it most
  • Altitude certified up to 8,999 feet above sea level
  • CSA/ASME rated temperature and pressure relief valve

BrandRheem
Application TypeCommercial
FuelPropane
Tank Capacity100GAL
StyleCondensing
BTU300K BTU
Tank MaterialSteel
ASME CodeASME
Part NumberRHE686103
Width26-3/8IN
Height77IN
Shipping Weight775.000 LBS
