Designed to Fit into Tight Retrofit Applications.

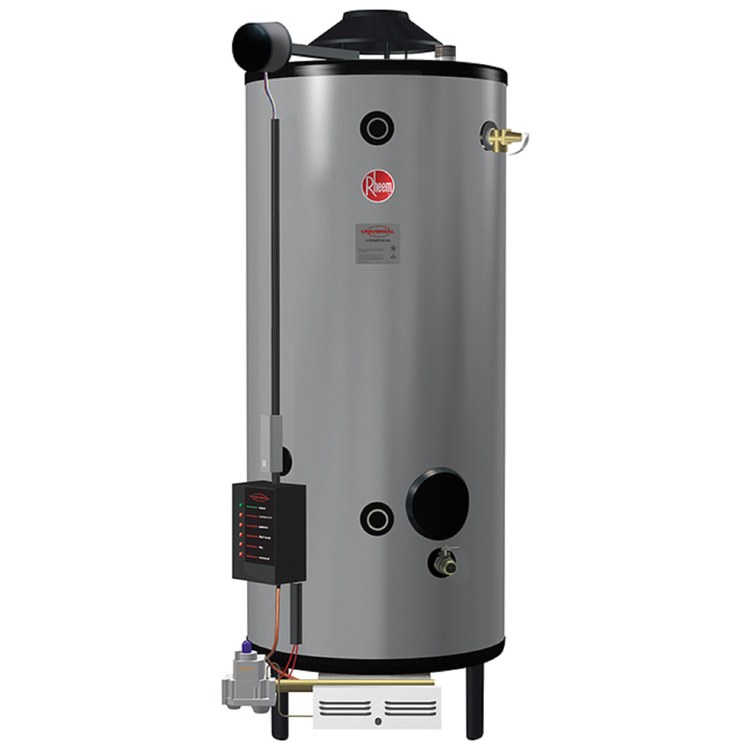

Universal is a family of commercial gas water heaters that are designed to fit into tight retrofit applications. The tighter the commercial retrofit, the more you will appreciate how the Universal's compact size and multiple water connections simplify installations. This Universal ASME-rated 100-gallon natural gas-fired model offers 80% thermal efficiency, 250,000 BTU/h and has maximum temperature setting of 180 degrees Fahrenheit.
- Water capacity: 100 gallons
- Maximum heating capacity: 250,000 BTU/h
- Space Saver Design: The short heights and narrow jacket diameters, plus the top, front and rear water inlets/outlets offer the ultimate in installation flexibility.
- System Sentinel LED Diagnostic System: Exclusive diagnostic system, with glowing LED lights, verifies system operation sequence by sequence.
- Patented Technology: Universal's proprietary steel formulation, patented multi-flue design, combined with two coats of porcelain enamel, results in a superior heat exchanger design.
- Stainless Steel Burners: Precision burners, raised port design, are formed from high-chromium stainless steel. Each burner assembly slides out like a drawer for quick inspection and maintenance.
- Low-Profile Automatic Flue Damper: Low-profile damper minimizes overall product height. Heavy-duty vent hood supports are designed to withstand the rigors of installation.
- Full-port, Full-flow Drain Valve: Factory installed brass drain valve allows for faster draining and servicing.
- Direct Spark-to-Pilot Ignition System: Energy-saving ignition that ignites pilot only when there is a call for heat.
- Altitude Certifications: Up to 5,000 feet for natural gas and 2,000 feet for LP, with high altitude certification kit, up to 8,000 feet.
- Patented Anode Rods: Anode design utilizes multiple magnesium rods to ensure corrosion resistance for a long tank life.
- 3-year limited tank warranty
