Gas Valve

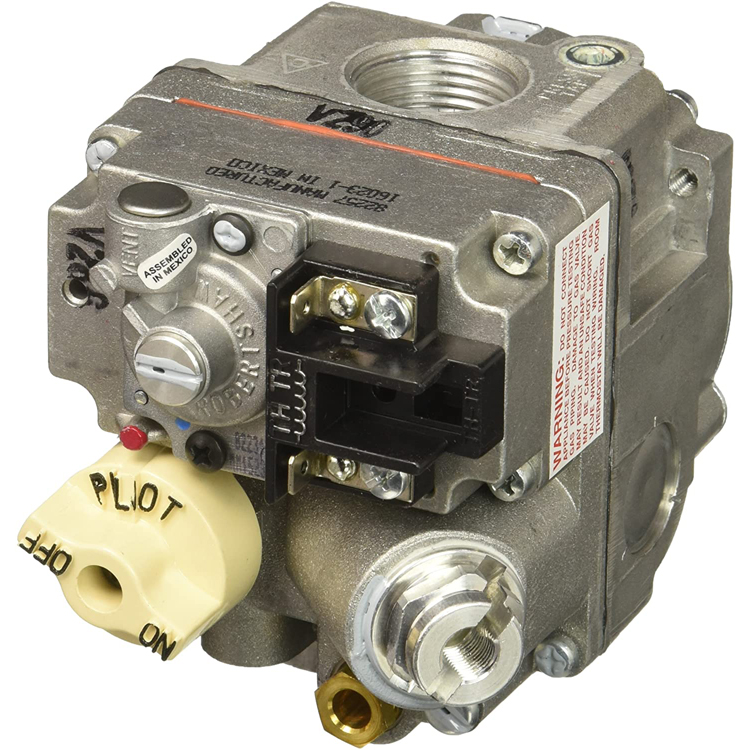

Robertshaw 700-400

Gas Valve 700 1/2 x 3/4 Inch FPT 1/2 Pounds per Square Inch -40 to 175 Degrees Fahrenheit

Authorized Distributor

$298.21  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

The Robertshaw 700 Series 24 V Combination Gas Valves offer replacement flexibility. With capacities ranging to 720000 BTU, three-position outlets and multi-positional capability, these combination gas valves offer unlimited replacement possibilities. The 24 V Uni-Kit models are suitable for either natural or LP gas. The valve is factory set at 3.5 in WC natural gas. A regulator cover plate is included to convert to LP gas.

  • Gas cock dial marking off-pilot-on
  • Pilot outlet 1/4 in tubing
  • Combination screw/spade terminal type
  • Maximum inlet pressure 14 in WC (0.5 psi)
  • Standard NEMA terminals
  • Inlet filtered screen
  • Various gas types: Natural, manufactured, mixed, LP and LP/air mixtures
  • Multiple actuators available
  • (1) 3/4 x 1/2 in NPT reducer bushing
  • Straight-thru side outlets
  • Uni-Kit natural gas pressure regulation
  • Factory part number: 7000BER
  • 24 VAC at 0.2 A, 50/60 Hz, 12 VDC at 0.18 A

BrandRobertshaw
Size1/2x3/4IN
End ConnectionFPT
Pressure1/2PSI
Temperature-40 to 175DEG F
Shipping Weight2.000 LBS
