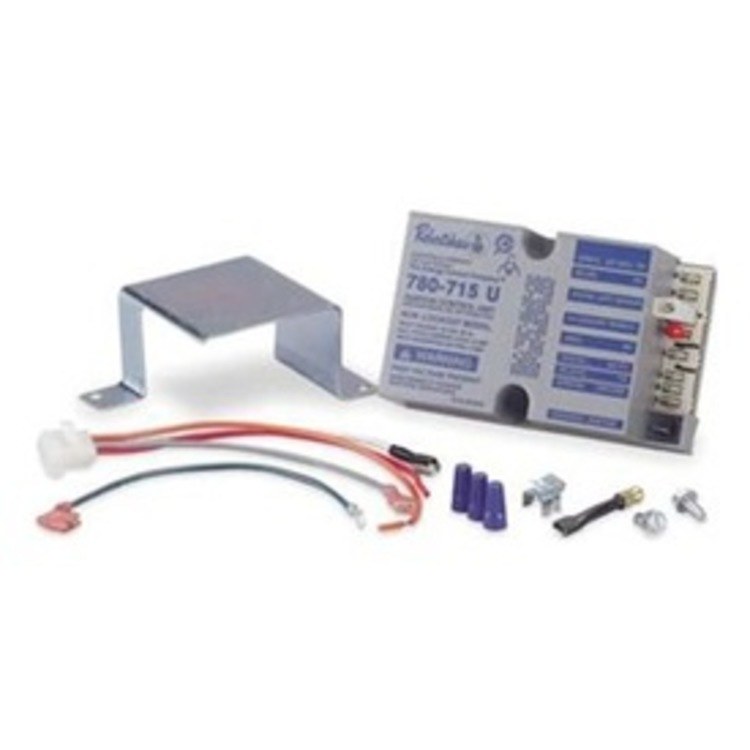

Igniter Module Non-Lockout Vent Damper Adapter Assembly for 1 Rod (Local Sense) and/or 2 Rod (Remote Sense) Systems

The Robertshaw 780 Series Pilot Controls Uni-Kits feature a flame sense circuit that will work equally well on a one rod (local sense) or a two rod (remote sense) application. The automatic recycle features assure that, in the event of flame failure, main gas is disabled and the spark repetition sequence is restarted until pilot gas is ignited. Only after pilot ignition has been re-established can main gas be returned to the burner. The Robertshaw lockout version kits include the capability to shut off all gas to the furnace, should pilot ignition fail to occur after a predetermined time period. The 780-002 provides three tries for ignition. Each ignition period is 90 sec followed by a six minute time delay between ignition attempts. If the pilot flame is not sensed after three tries, the unit goes into lockout and must be reset at the thermostat.

• Replaces one rod or two rod systems
• Reduces truck stock inventory, saving space and money
• Includes vent damper adapter assembly
• Easy-to-install with complete in-depth installation instructions
• Pilot and main valves draw 1 A at 0.5 power factory
• Combined load at 1.5 A at 0.4 power factory
• 95 percentage relative humidity non-condensing at 104 deg F
• 3 to 4 per sec spark rate
• 0.8 sec flame failures re-ignition time
• 0.7 a thermostat anticipator setting
• -40 to 175 deg F temperature
• 0.7 mA DC at 25 deg C flame sensor current
• 24 VAC 20 VA transformer
