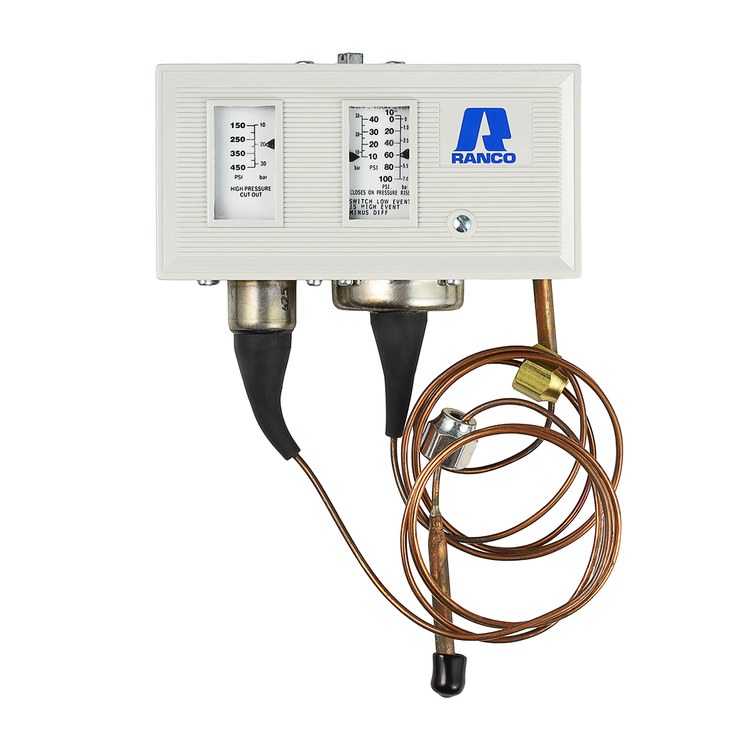

Pressure Control Dual Auto Reset Universal

The Ranco Dual Pressure Controls combine the functions of a single high-pressure limit control and a single low-pressure control in one unit with a single pole, single throw (SPST) switch.

• Convertible feature allows selection of manual or reset function when operating at high pressure (O12-4833/O12-4834)
• A wide range of high pressure manual or automatic reset controls can be replaced (O12-4833 or O12-4834)
• A high pressure limit is combined with suction pressure sensing to provide temperature control or pump down
• High limit adjustments screw
• Low pressure differential and range adjusting screw
• Selector screw for manual or automatic
• Reset button
• Low pressure scale plate
• High impact plastic cover with center mount screw
• High pressure scale plate
• Super Cap capillary vibration protection system
• Color-coded for easy identification of pressure line
• High-side capillary flare nut (silver)
• Low-side capillary flare nut (brass)
• 36 in capillary length
• 150 to 450 psi high pressure (open high) cut-out
• 10 in Hg to 100 psi low pressure (open low) cut-in
