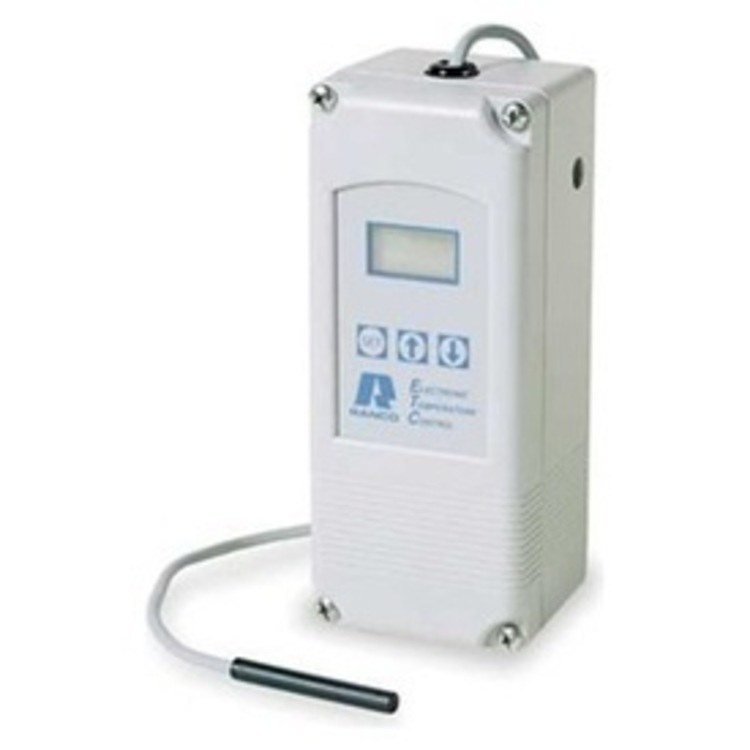

Temperature Controller Ranco Electronic Two Stage LCD Display 24 Volt 8 x 3 x 2 Inch

ETC Series Electronic Controls The Ranco ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications. With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility. Models available include 120/208/240V AC and 24V AC.

• Wide temperature range (-30 to 220 deg F)
• Wide differential adjustments (1 to 30 deg F)
• LCD read-out for sensor temperature, control settings, and relay status
• High amp output relay (FLA 16 A at 120 VAC and 8 A at 208/240 VAC) single stage
• EEPROM memory retains control settings during power outages
• Keypad lockout to prevent end-user alteration of settings
• 8 ft lead with sensor is extendable up to 400 ft using 18 or 22 ga thermostat wire
• Easy 4-step set up
• Heavy duty relay is 1 hp rated
• Selectable deg F or deg C heating or cooling modes
• Single and two stage models
• NEMA 1 case and cover
• NEMA 4X models available
• White backlight on display
• Sensor rated IP67 for dust and water (<1 m) resistance
