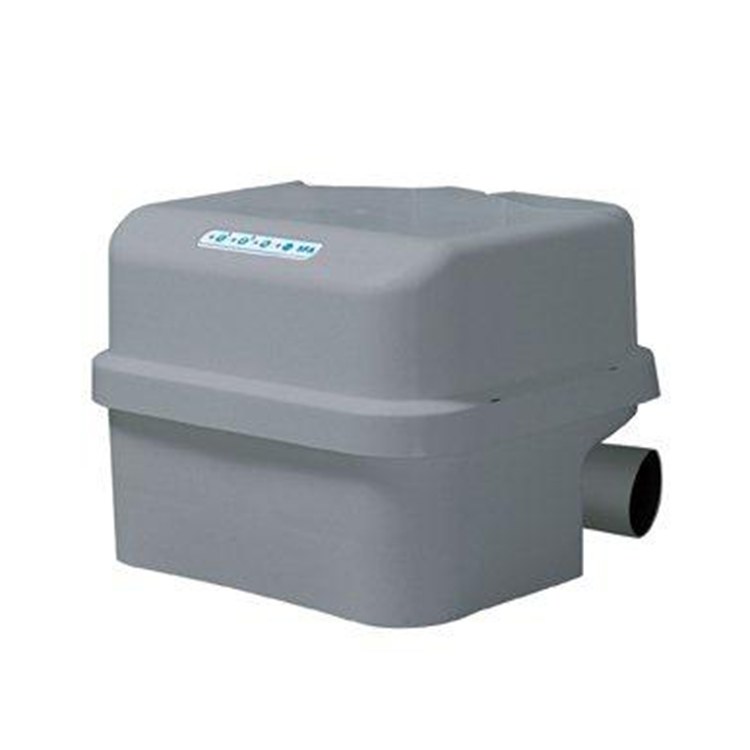

Sanicubic 2 Duplex Grinder Pump

This easy-to-install, heavy-duty Saniflo Sanicubic 2 duplex grinder pump is designed to meet the demanding needs of commercial and residential sewage applications. It allows you to add a complete bathroom up to 36 feet below the sewer line and up to 328 feet away from a soil stack. Made of durable stainless steel, the duplex grinder system liquefies solids into fine particles that are then pumped away through the 1-1/2" discharge pipe. It's ideal for handling the effluent from a toilet, bathroom sink, kitchen sink, laundry sink, bathtub/shower, and washing machine (indirect connection) in homes, rental properties, and offices. The Sanicubic pump uses a powerful 1-HP motor with a motor speed of 2,800 rpm to handle up to 50 gallons per minute. The four inlets can accommodate 1-1/2" or 4" diameter pipes. Features smart-pump operation that activates a secondary pump should the incoming rate become higher than the outgoing rate. Both pumps will work simultaneously until the condition is alleviated. An internal check valve prevents backflow into the unit. The Sanicubic 2 has been certified to American and Canadian Standards. Macerating standard US: CSA Certified & IAPMO (UPC) listed - ASME A112.3.4, CA: Macerating Standard CSA B45.9.

• Measures 16-1/2" H x 23-3/4" W x 19-1/4" D
• Power supply: 220-240V - 60 Hz
• Discharge: vertically up to 36 ft
• horizontally up to 328 ft
• Discharge rate: 50 gal/min
• Discharge pipe diameter: 1-1/2"
