Boiler Control Blue Plastic 115 Volt 32-122 Degrees Fahrenheit

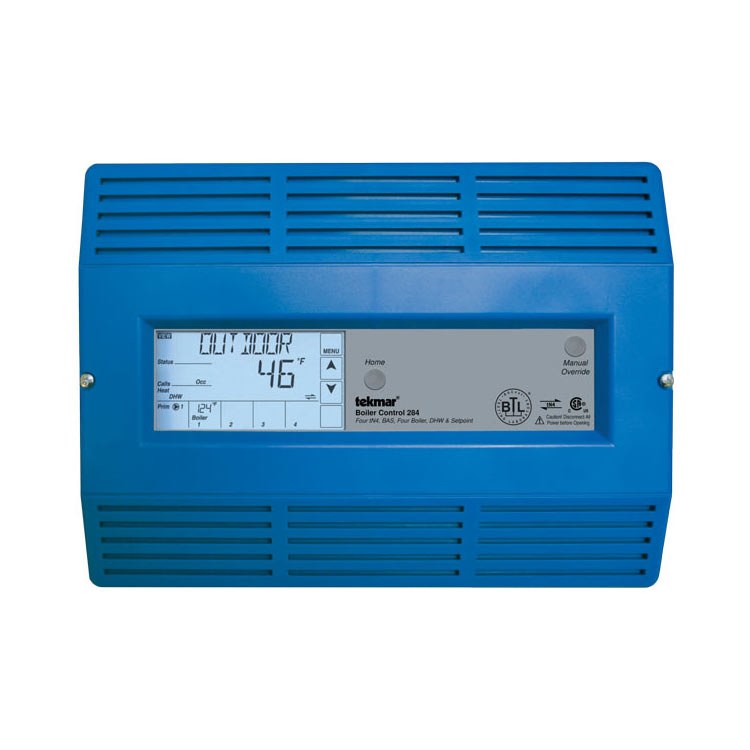

The Boiler Control 284 is designed to operate up to four boilers to accurately maintain a target water temperature. The 284 operates both condensing and non-condensing boilers that are either modulating, single stage or two stage to provide a flexible, cost effective mixed boiler plant solution with better system performance. The target water temperature is based on outdoor temperature reset or a fixed setpoint for space or process heating applications. Additional loads supplied by the 284 include domestic hot water and fixed setpoint heating. Boiler equal run-time rotation, stand-by primary pump operation and pump exercising all increase boiler plant reliability. The 284 communicates with a Building Automation System (BAS) using BACnet or Modbus for remote monitoring and adjustment capability. tekmarNet Thermostats or a tN4 Gateway 485 can be added to optimize system performance and provide remote monitoring capability.

• Outdoor temperature reset, programmable schedules
• Boiler isolation valves
• Setpoint operation
• Energy, flow and pressure monitoring
• TekmarNet 4 compatible, control up to four boilers
• BACnet or Modbus communication, primary pump sequencing
• Combustion air damper control
• Condensing and non-condensing boiler groups, modulating, single stage or two stage
• DHW priority
