Condenser Motor

US Motor 5464

1/6-1/3 HP 208/230-Volt 60Hz 825 RPM Rescue Reversible TEAO Condenser Fan Motor

Authorized Distributor

$317.88  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

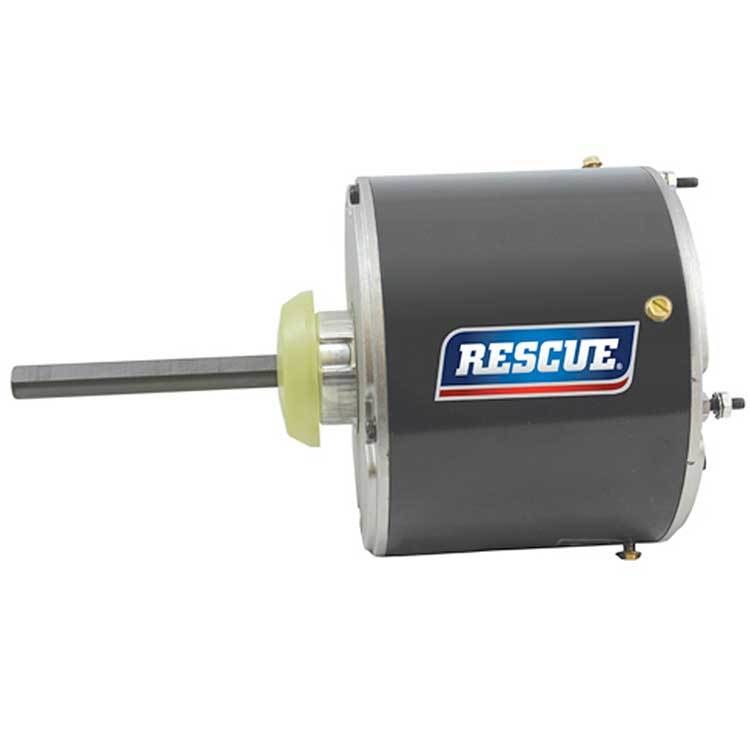

This US Motors 5464 Rescue Reversible TEAO Condenser Fan Motor is designed for commercial and residential condensing units. Can replace a range of horsepower application and a variety of mounting styles. It features a 1/6-1/3 HP, 208/230-volt 60Hz motor and delivers 825 RPMs.

  • 1/6-1/3 HP, 60Hz, 1.0-1.9 amps
  • High 158 degree F (70 degree C) Or 140 degree F (60 degree C) ambient designs
  • Automatic reset thermal overload protector
  • Designed for use with 370V capacitors
  • Special treated rotor for corrosion protection
  • Includes lead end mounting holes for Rheem or Trane units
  • 48" leads
  • Extended mounting studs
  • Ball bearings
  • Reversible rotation
  • High efficiency design
  • Continuous duty, air over

BrandUS Motor
Product TypeFan Reversible
Horsepower1/6 to 1/3HP
Voltage208/230V
Rotation825RPM
Shipping Weight18.000 LBS
