Ball Valve

Apollo 7010901A

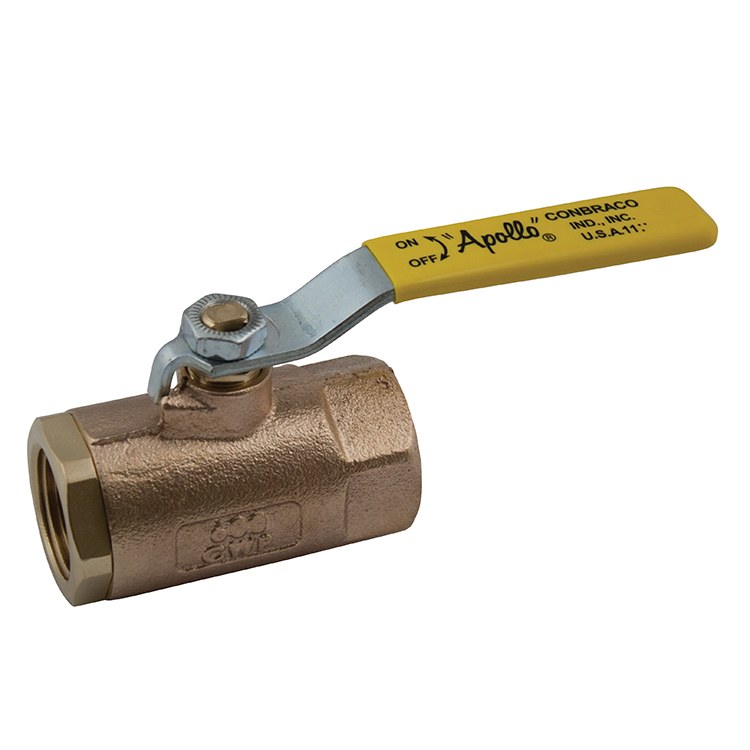

70-100 Series 2-1/2" Standard Port Threaded Ball Valve

Authorized Distributor

Account required to order

The Apollo 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a two-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo's South Carolina manufacturing plants, this 2-1/2" valve provides trusted performance.

  • Premium materials and heavy-duty construction
  • Adjustable stem packing gland
  • Blow-out proof stem design
  • RPTFE Seats and MPTFE stem packing rings
  • Chromium-plated ball
  • 100% factory tested
  • Maximum pressure: 600 psi CWP, 150 psi SWP
  • Maximum temperature: 500 degrees F
  • Vacuum service to 29" Hg
  • Manufactured in the USA, ARRA compliant

BrandApollo
Size2-1/2IN
End ConnectionFemale
MaterialBronze
Port TypeStandard Port
Pressure600CWP
Handle TypeLever Stainless Steel
Piece2
Seal MaterialPTFE
Temperature500DEG F
End to End Distance6.25IN
Shipping Weight15.000 LBS
