Ball Valve

Apollo 7014501

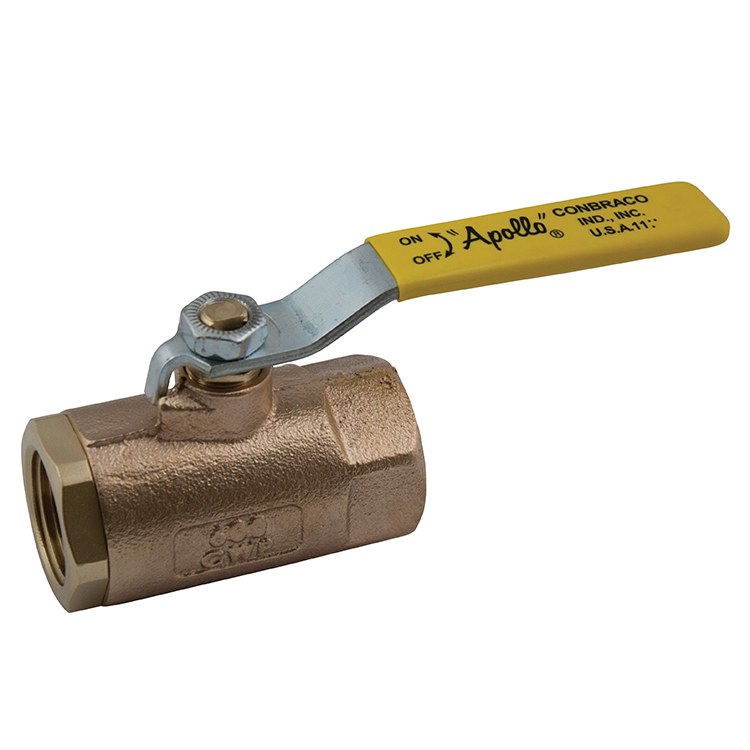

70-140 Series 1" Standard Port Threaded Ball Valve

Authorized Distributor

Account required to order

The Apollo 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-140 model is a two-piece standard port ball valve featuring female NPT connections and a 316 Series stainless steel ball and stem. Cast and machined in Apollo's South Carolina manufacturing plants, this 1" valve provides trusted performance.

  • Premium materials and heavy-duty construction
  • Adjustable stem packing gland
  • Blow-out proof stem design
  • RPTFE Seats and MPTFE stem packing rings
  • Chromium-plated ball
  • 100% factory tested
  • Maximum pressure: 600 psi CWP, 150 psi SWP
  • Maximum temperature: 500 degrees F
  • Vacuum service to 29" Hg
  • Manufactured in the USA, ARRA compliant

BrandApollo
Size1IN
End ConnectionFemale
MaterialBronze
Port TypeStandard Port
Pressure600CWP
Handle TypeLever
Piece2 Piece
Seal MaterialRPTFE
OptionsStainless Steel Ball and Stem
Temperature500DEG F
End to End Distance3.37IN
Shipping Weight2.000 LBS
