Ashlyn Monitor 14 Series Shower Trim

Designed with Monitor Technology

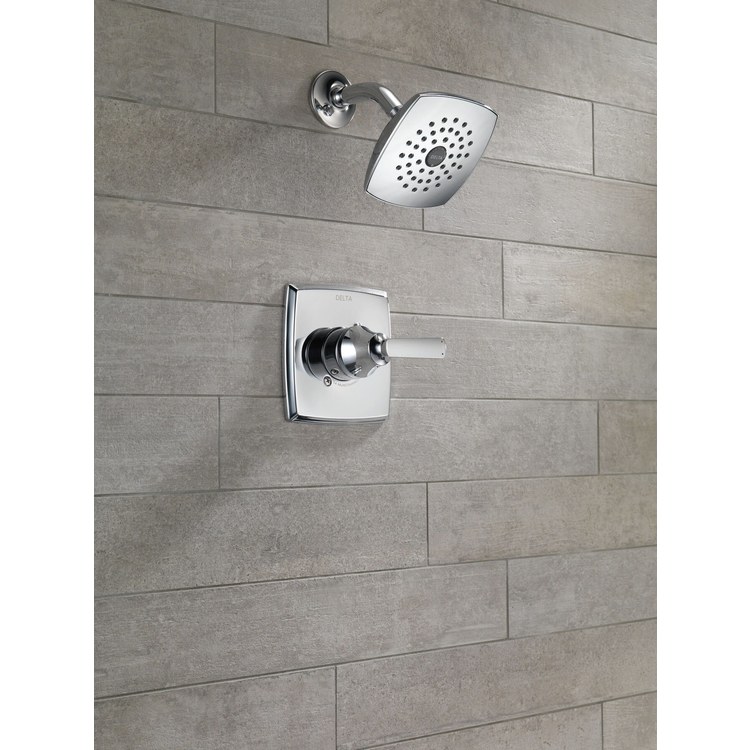

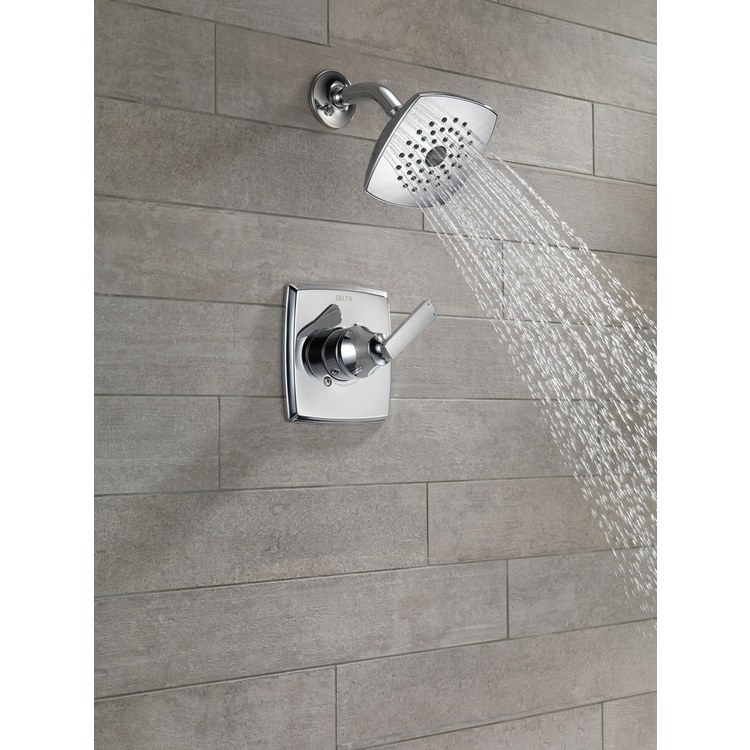

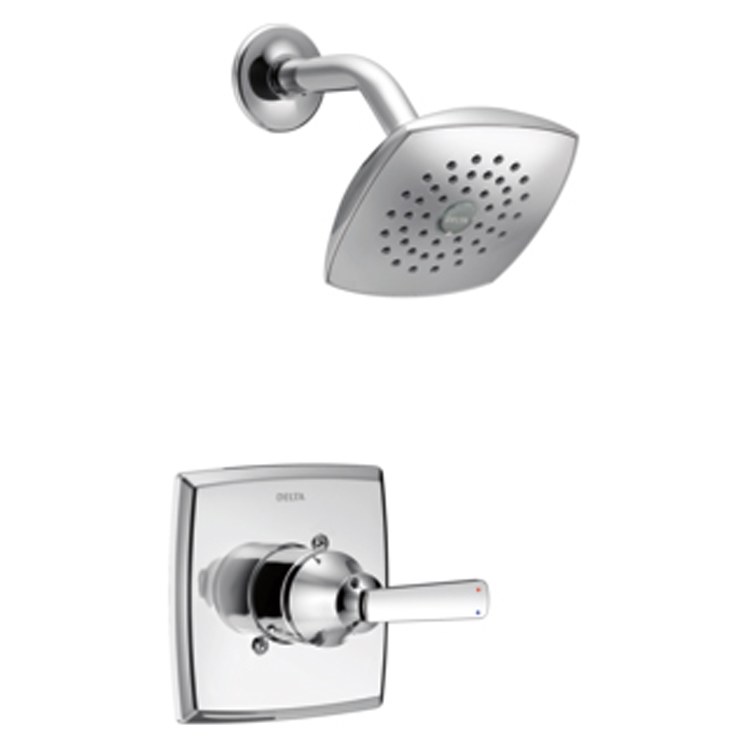

Delta designed this Ashlyn shower trim kit with Monitor Technology. The kit has a 1.75 gpm flow rate, a 5-1/4" square showerhead, while the shower arm's horizontal length is 5-1/2". The showerhead has Touch-Clean spray nozzles for easy calcium and lime build-up removal. The escutcheon has a 6" diameter, red and blue pad print temperature indicators, and includes a metal lever handle. The handle rotates 120 degrees and controls the water temperature.

The kit's design features a single-function pressure-balanced mixing valve cartridge that maintains a consistent temperature to prevent scalding during water pressure changes. The MultiChoice Universal Rough R10000 is not included and is sold separately. This model has a Chrome finish.

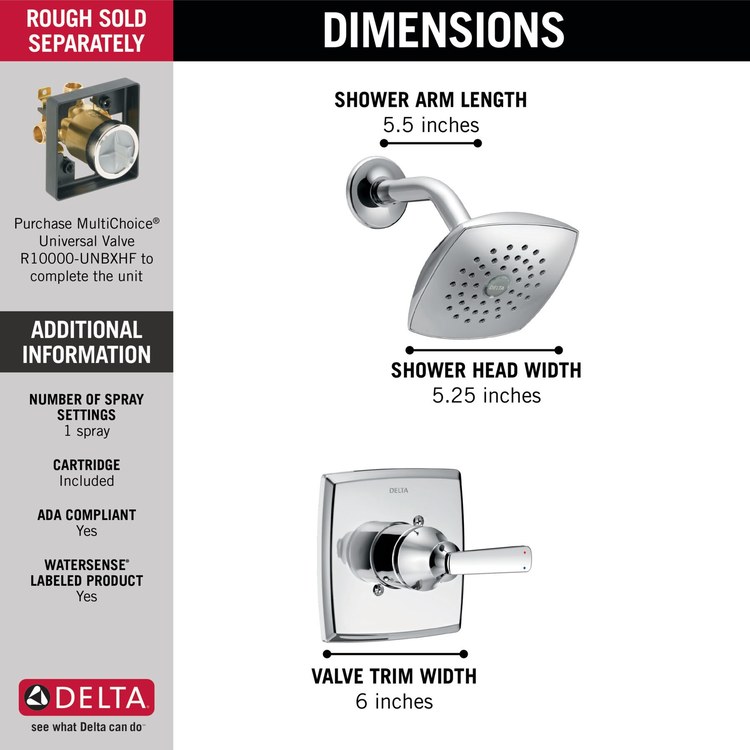

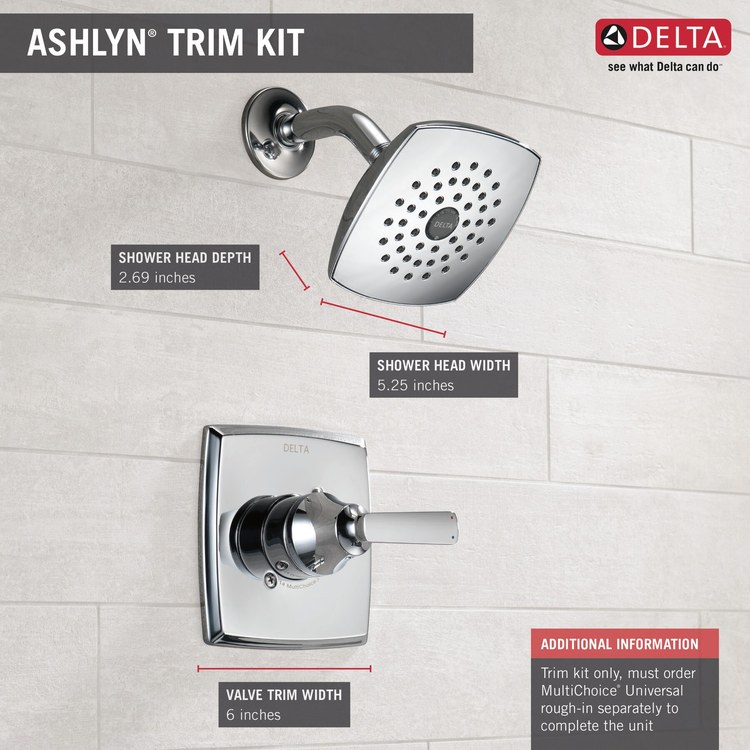

• Flow rate: 1.75 gpm
• Showerhead dimensions: 5-1/4" square
• Shower arm length: 5-1/2"
• Escutcheon dimensions: 6" square
• Solid brass fabricated body
• Back-to-back installation capability
• Touch-Clean spray nozzles for easy calcium and lime build-up removal
• Maintains balanced hot and cold water pressure
• Metal lever handle controls temperature
• Field adjustable means to limit handle rotation into hot water zone
• Maximum handle rotation: 120 degrees
• Red and blue pad print temperature indicators on escutcheon
• Order MultiChoice Universal rough R10000 series separately
• Finish: Chrome
• ADA-compliant
