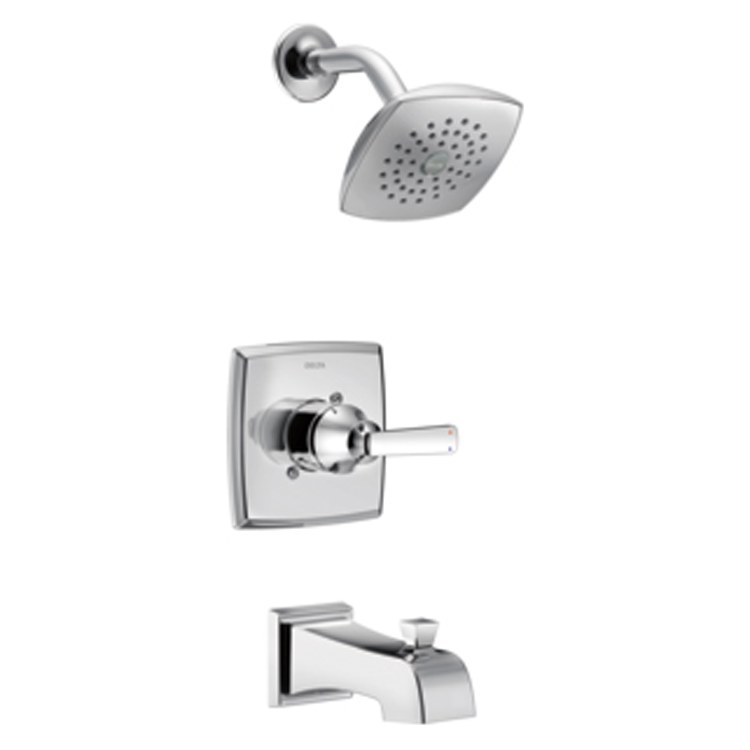

Ashlyn Monitor 14 Series Pressure Balance Tub and Shower Trim

Designed with Monitor Technology

Delta designed this Ashlyn shower trim kit with Monitor Technology. The kit has a 1.75 gpm flow rate, a 5-1/4" square showerhead, while the shower arm's horizontal length is 5-1/2". The showerhead has Touch-Clean spray nozzles for easy calcium and lime build-up removal. The escutcheon has a 6" diameter, red and blue pad print temperature indicators, and includes a metal lever handle. The handle rotates 120 degrees and controls the water temperature.

The tub spout has a 6.0 gpm flow rate and a 7-15/16 spout reach. The kit's design features a single-function pressure-balanced mixing valve cartridge that maintains a consistent temperature to prevent scalding during water pressure changes. The MultiChoice Universal Rough R10000 is not included and is sold separately. This ADA-compliant model has a Chrome finish.

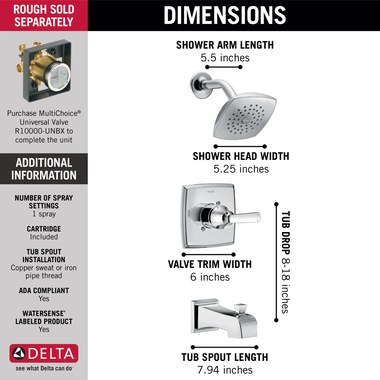

• Showerhead flow rate: 1.75 gpm
• Tub flow rate: 6.0 gpm

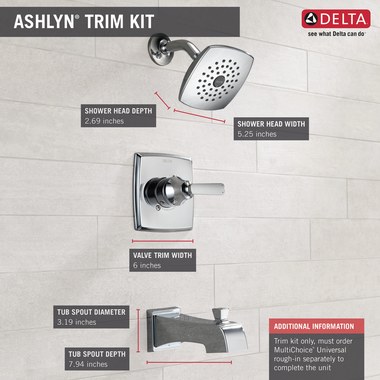

• Showerhead dimensions: 5-1/4" square
• Shower arm length: 5-1/2"
• Escutcheon dimensions: 6" square
• Tub spout reach: 7-15/16"
• Solid brass fabricated body
• Touch-Clean spray nozzles for easy calcium and lime build-up removal
• Maintains balanced hot and cold water pressure
• Metal lever handle controls temperature
• Field adjustable means to limit handle rotation into hot water zone
• Maximum handle rotation: 120 degrees
• Red and blue temperature indicators on escutcheon
• Order MultiChoice Universal Rough R10000 series separately
• Finish: Chrome
