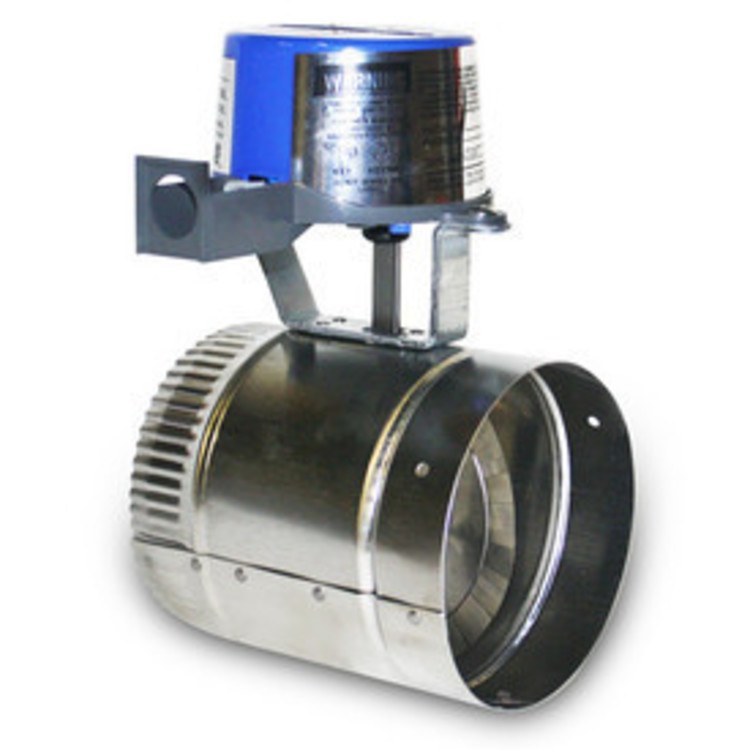

Damper Automatic Vent 5 Inch Stainless Steel for 24 Volt Gas Intermittent Ignition and Standing Pilot Ignition Systems GVD-5PL
Authorized Distributor
Works automatically to allow natural draft during appliance operation while preventing residual appliance heat and conditioned air from escaping during off cycles
Also prevents the infiltration of cold air during down drafts
Made of stainless steel and available in 8 sizes, 4 through 10 in and 12 in
Stainless steel construction provides superior corrosion resistance
Damper operation, power opens in 15 sec, power closes in 15 sec, power is off at damper motor when it is at rest
Hold open switch allows damper to be placed in an open position and taken out of service to assist with trouble shooting appliance problems
Keyed wiring harness connector plug installs only one way, preventing incorrect wiring connection
15/16 in clearance
4-13/16 in exposed pipe
Brand
Field Controls
Product Type
Automatic Vent
Size
5IN
Material
Stainless Steel
Application
24 Volt Gas Intermittent Ignition and Standing Pilot Ignition Systems
