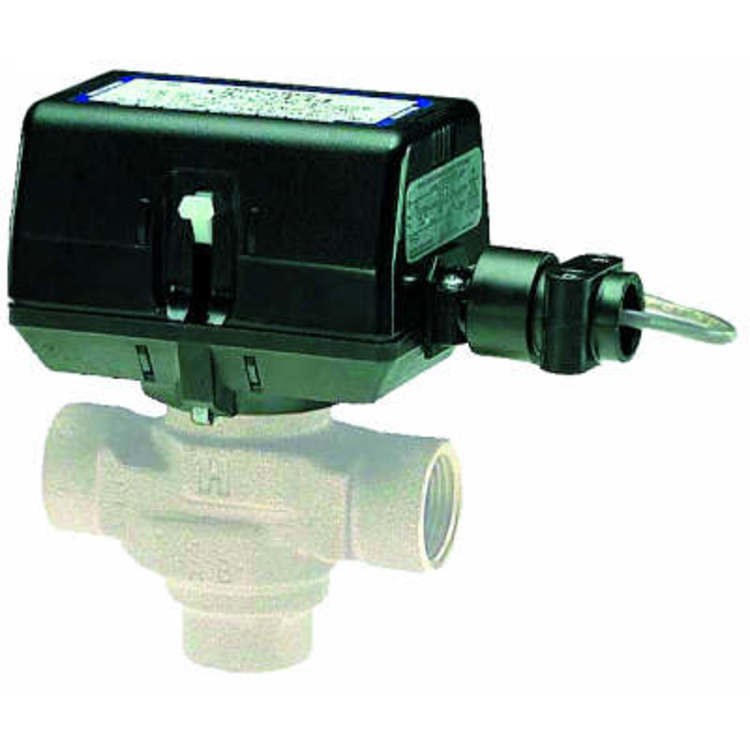

Floating Actuator

Honeywell Home VC6934ZZ11

Floating Actuator Low Voltage 3 Wire Stays in Place Direct Coupled

Authorized Distributor

$216.03  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

Control central heating and cooling, fan coil systems, radiators and convectors. Depending on the model, it can be controlled by a low voltage SPST or SPDT switch, pulse-width modulated 24 VAC signaler floating input, modulating controller.

  • Double insulated actuator
  • Quick and easy replacement of moving parts
  • Actuator head installation does not require draining the system
  • Selectable/switchable electronic fail safe normally open or normally closed
  • All VC series actuator-valve combinations provide 60 psi close-off
  • -40 to 150 deg F shipping and storage temperature
  • Environmental, electrical or ingress protection rating: Double insulated, IP40
  • No internal auxiliary switch
  • 203 deg F fluid temperature
  • Fail safe mode: Stays in place
  • Molded strain relief cable, conduit clamp
  • Lever manual operation
  • 50/60 Hz frequency
  • Self-alignment shaft adapter
  • 60 psid maximum differential pressure (close-off)

BrandHoneywell Home
Product TypeLow Voltage 3 Wire
StyleStays in Place
MountingDirect Coupled
ApplicationHeating, Ventilation, Air Conditioning, Refrigeration
Length2-11/16IN
Width3-23/32IN
Height2-3/4IN
Shipping Weight3.000 LBS
