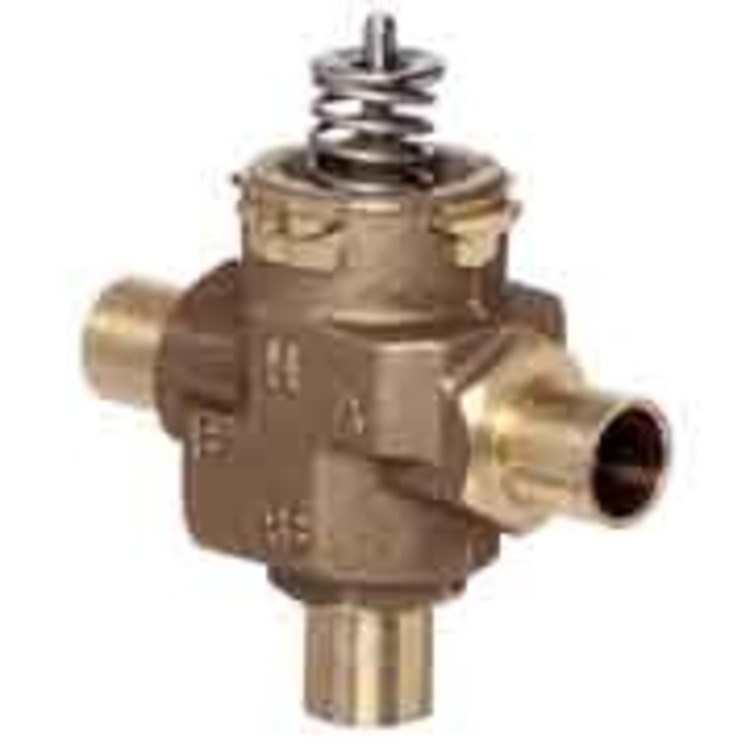

Valve Body 3-Way 1/2 Inch Bronze Sweat 3.7 Cv

Three-way Cartridge Cage Valves are intended for hydronic applications in a normal indoor environment to control flow of hot/chilled water glycol solution up to 60% concentration. These valves are designed for zone control of heating/cooling systems.

• A-AB-B body pattern
• 6000-series valves for two-position control
• High close-off rating independent of Cv
• No tools required for actuator installation or removal
• Actuator removal does not require draining system
• Service is by replacement of cartridge, not valve body
• Cartridge replacement rebuilds valve to factory-new condition
• Used with VC actuators, 2-position, on-off Type
• Timing: When used with VC series actuator - ON/OFF models with 6 sec
• Ambient temperature range: 32 to 150 deg F
• 60 psi maximum differential pressure rating (close-off)
• Capacity: 3.7 Cv
• Valve action: Stem up to close A port
• Controlled fluid: Chilled or hot water with up to 60% glycol
• Ryton, Noryl engineering plastic cartridge
