Damper

Honeywell Home RRD6

Damper RRD Retrofit 6 Inch Round Direct Connect to Damper Shaft Galvanized Steel Power Open Power Close

Authorized Distributor

$258.57  / ea
Qty
In Stock. Sign in to view by location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

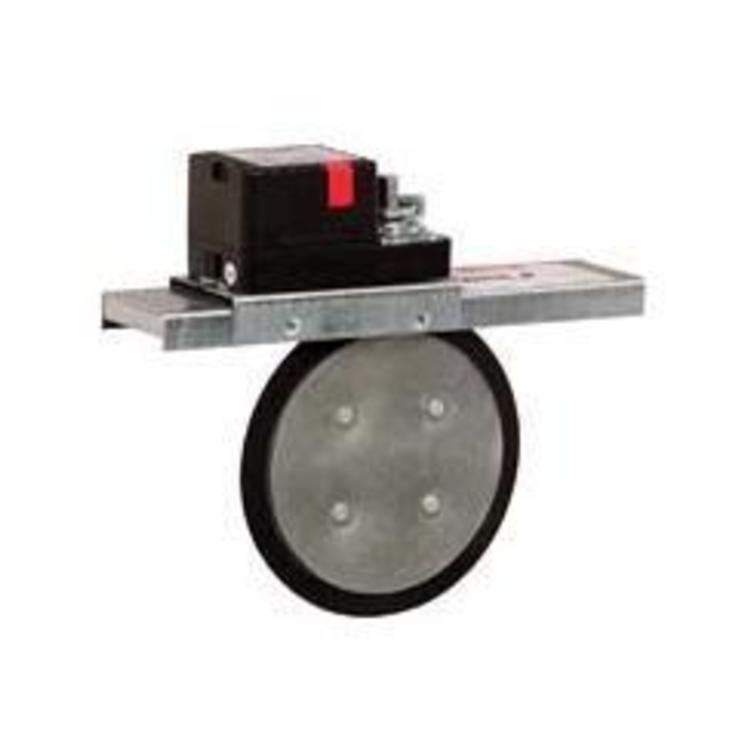

The RRD is a round damper that is easily inserted into rigid round ducts for retrofit zoning in forced air heating and cooling systems. This power open, power closed damper actuator is available in four sizes for 5 in, 6 in, 7 in and 8 in ducts.

  • Easy slide-in installation
  • 2.5 VA allows for many dampers on one zone
  • Available in 4 sizes to fit most rigid round branch ducts
  • Quiet, long life motor automatically shuts itself off in full open and closed positions
  • GGaskets around blade and under motor housing for low internal leakage and very low external leakage
  • Range stops with easy adjustments from top of motor
  • Easy-to see and reliable mechanical blade position indicator
  • Easy-to hood up with conventional thermostat wire
  • Simple manual blade positioning with push button gear release
  • Motor or actuators mounting - direct connection to damper shaft

BrandHoneywell Home
Product TypeRetrofit
Size6IN
Damper ShapeRound
Motor MountingDirect Connect to Damper Shaft
MaterialGalvanized Steel
Motor TypePower Open Power Close
Number of Wires3
Voltage24V
ApplicationZone Damper
Shipping Weight5.000 LBS
