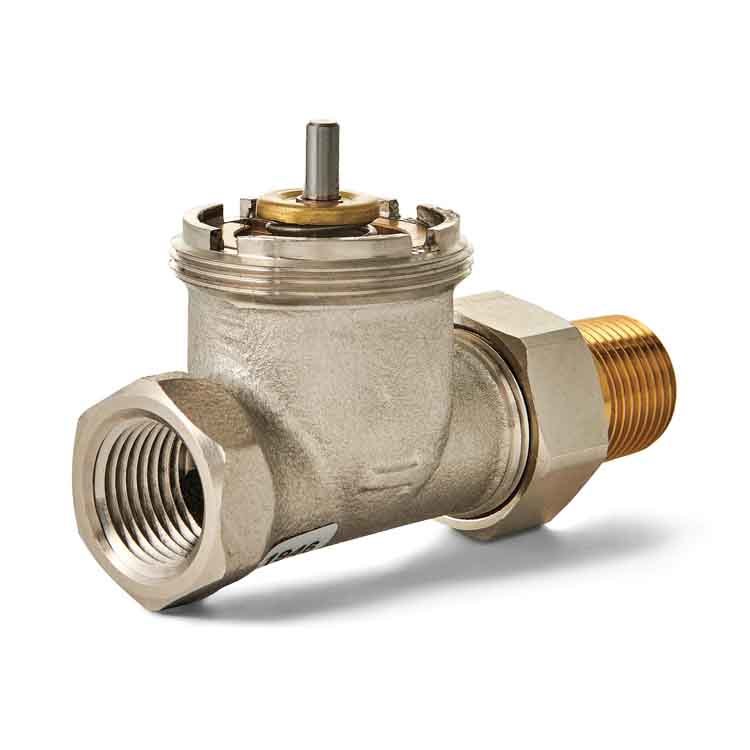

Radiator Valve Straight Pattern Thermostatic 1 Inch Threaded Bronze Flow Rate 7 Cv

High Capacity Thermostatic Radiator Valves with T104 Actuators provide control of temperature by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.

• Designed with the higher capacity normally required by North American heating systems
• Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems
• Nickel plated bronze casted body with working parts in cartridge insert for ease of service
• All working parts are replaceable using service tool (MT110C1011) while valve remains in service, in-line, under pressure, valves normally open without control mounted
• Valves may be used with T104 thermostatic actuators
• Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units
• Straight body pattern
• 17 psi maximum differential pressures (close-off)
• 193000 Btu/hr capacity (steam)
