Automatic Damper

Honeywell Home ARD14TZ/U

Automatic Damper TrueZone ARD 1 Blade 14 Inch Round Side or Top Galvanized Steel Power Closed Spring Open

Authorized Distributor

$288.57  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

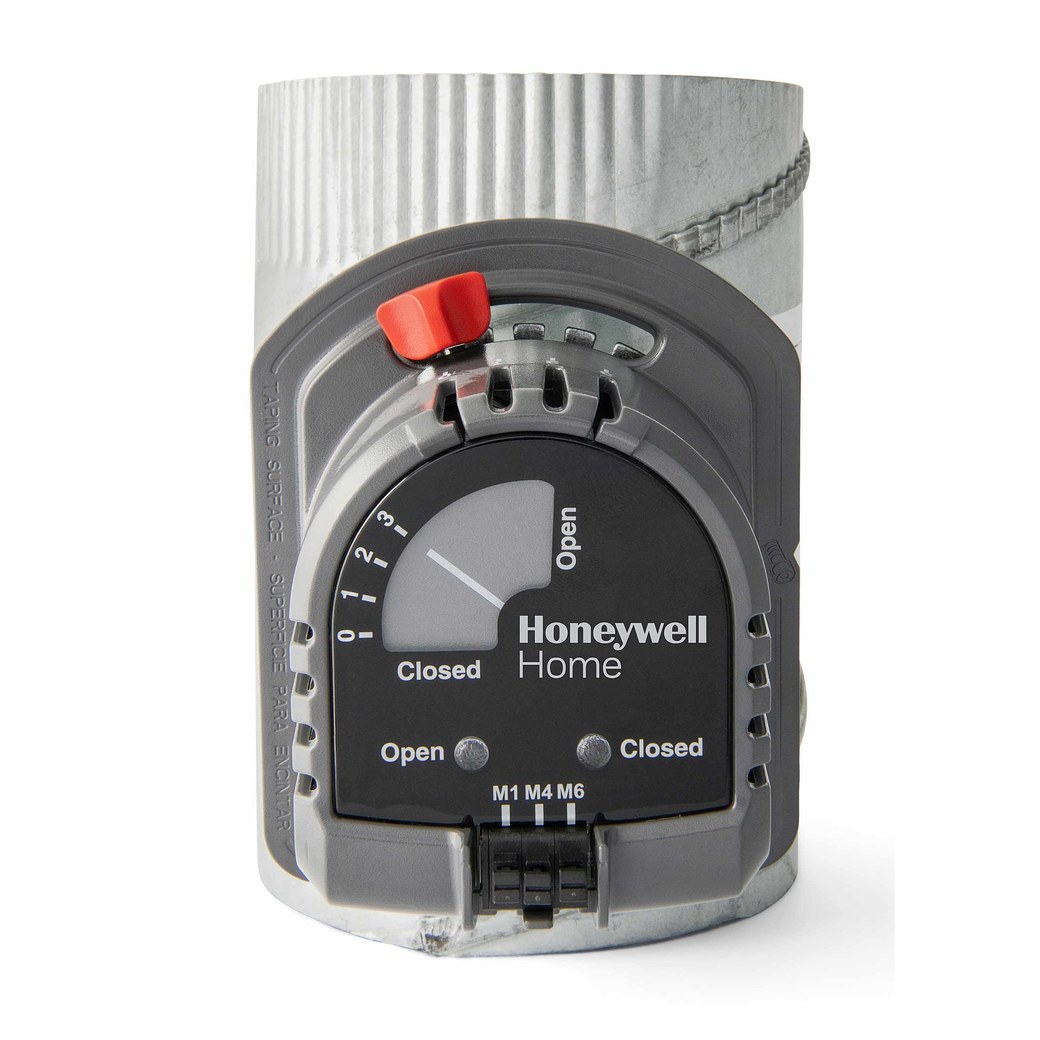

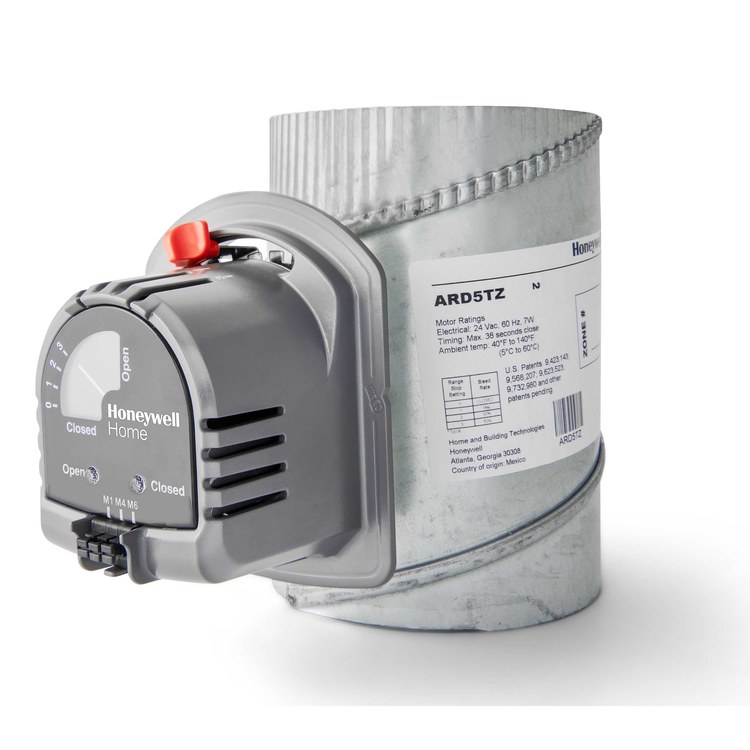

Honeywell Automatic Round Damper power-close, spring-open models ensure low leakage while controlling circulating air in heating, cooling and ventilation systems.

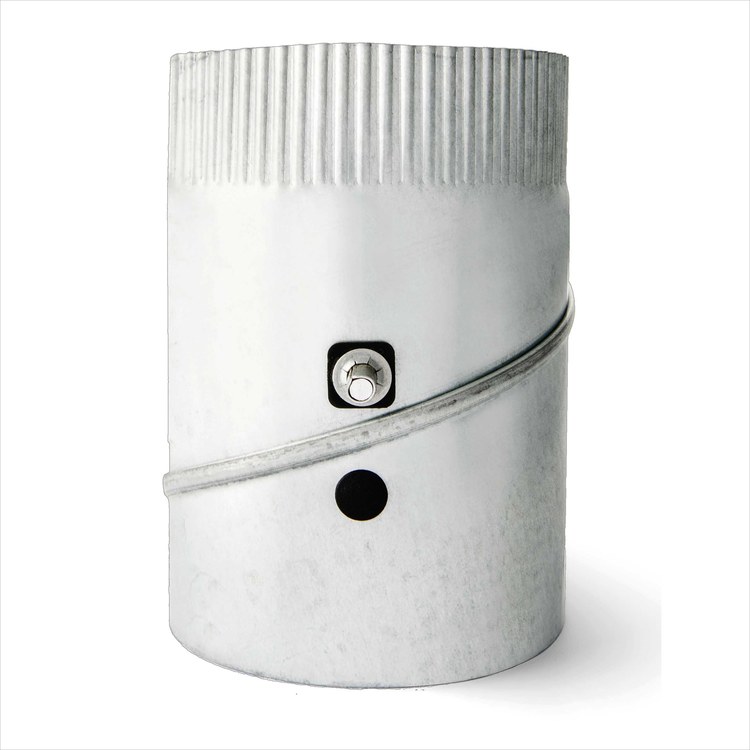

  • Features galvanized steel with single blade damper, which closes off tightly against gasket for minimal leakage
  • Designated as power closed or spring return open damper for use with Honeywell zoning systems
  • Can be field-converted when used as an independent zone or for fresh air intake
  • Rated to operate up to 1 in WC
  • Available in 5 to 10 in, 12, 14, 16 and 18 in Dia
  • Adjustable close position range stops
  • Male (crimped) and female (uncrimped) ends to connect to any rigid or flexible round duct
  • Motor or actuators mounting - side or top
  • Fail-safe, normally open operation
  • Simple, easy-to wire, two wire installation with a third wire option M4 for LED open only light
  • 30 sec power closed/10 sec spring return

BrandHoneywell Home
Product Type1 Blade
Size14IN
Damper ShapeRound
Motor MountingSide or Top
MaterialGalvanized Steel
Motor TypePower Closed Spring Open
Wire TypeM1-Power/M6-Common/M4 Optional-LED Indication
Voltage24V
ApplicationZone Damper
Shipping Weight12.000 LBS
