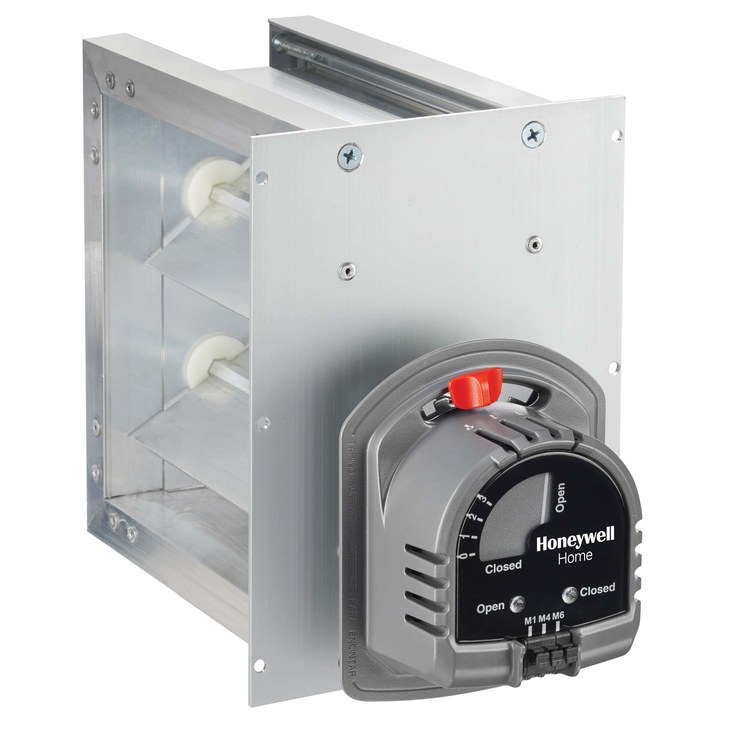

Zone Damper TrueZone ZD Parallel Blade 10 x 12 Inch Rectangular 12 Inch Side or Top Extruded Aluminum Power Closed Spring Open

The ZD is a power close and spring open damper. It has a 24-volt motor used to control circulating air in HVAC systems and used when a normally-open damper is required. The ZD is typically used with the TrueZONE and other electronic zoning systems.

• Mechanical visual position indicator for damper status
• Solid construction using extruded aluminum frame and blades
• Parallel blade design for low leakage performance
• Simple, easy-to wire, two wire installation with a third wire option M4 for LED open only light
• Reliable, strong, 24 V spring return motor
• Fail-safe, normally open operation
• Ordering Instructions: Order ZD (dimensions 1) x (dimensions 2), (motor is always mounted on dimensions 2 side) for example, ZD10x8 is a 10 in x 8 in damper with the motor on the 8 in side, but a ZD8x10 is an 8 in x 10 in damper that has the motor on the 10 in side
• Damper can be installed in any orientation (mounting side can be on either the bottom or the side of the duct)
• Motor or actuators mounting - side or top
• 30 sec power closed/10 sec spring return
