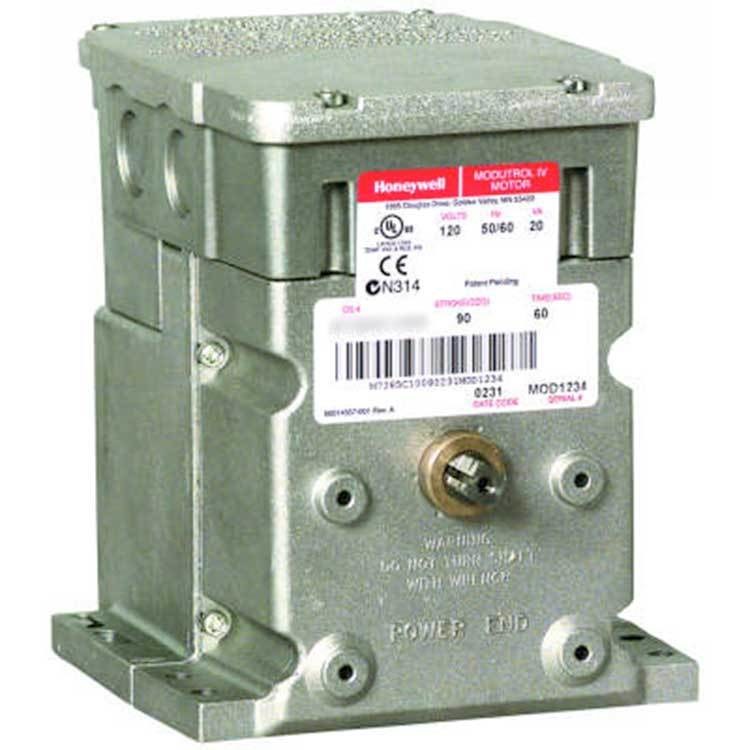

Actuator

Honeywell M9184D1021/U

Actuator Proportional Non-Spring Return Foot Mounted

Authorized Distributor

$2,381.58  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

  • Replace M944A,C,D, M954 motors
  • Oil immersed motor and gear train for reliable performance and long life
  • Wiring box provides NEMA 3 weather protection
  • Quick connect terminals standard - screw terminal adapter available
  • Integral auxiliary switches are available factory mounted or can be field added to TRADELINE models
  • Field addable interface modules can be mounted in wiring box to upgrade actuator to series 70 (electronic) control
  • Models available with tapped output shaft
  • Quick connect terminal connection
  • Dual ended motor shaft
  • Clockwise shaft rotation
  • Adjustable asymmetrical stroke

BrandHoneywell
Product TypeProportional
StyleNon-Spring Return
MountingFloor
Voltage24V
Temperature-40 to 150DEG F
Size6-7/16x5-1/2x7-5/16IN
ApplicationHVAC Systems
Shipping Weight8.000 LBS
