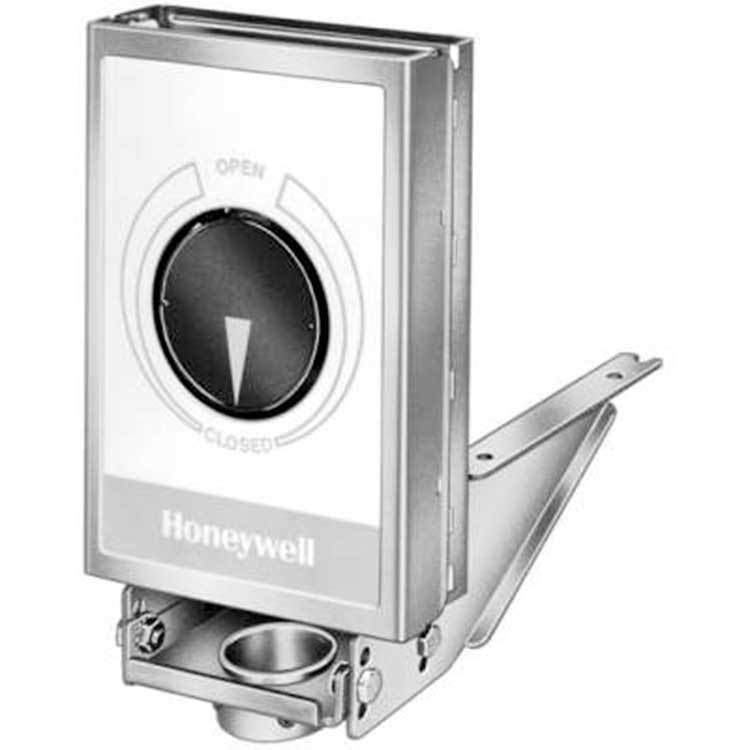

Valve Linkage with Anti-Spin 1-1/2 Inch for Modutrol IV Motor

The Q5001 Valve Linkage connects a Modutrol Motor to a 2- or 3-way valve. It is used primarily on V5011 or V5013 steam and water valves.

• Q5001 valve linkage is applicable to 2-Way or 3-Way valves in modulating or two-position service
• Linkage requires no adjustment when Use with Honeywell valves and Modutrol IV Motors
• Q5001 Valve Linkage replaces Q601 and Q618 Valve Linkages
• Linkage mounts directly to the valve bonnet, motor mounts to linkage bracket
• Easy-to-read position indicator
• Valve stem lift height cam selectable
• Over travel permits tight close-off without excessive motor strain
• Reversible cams on the Q5001 allow field selection of normally open or normally closed valve operation
• All models have anti-spin clips
• -40 to 150 deg F ambient temperature
• 160 or 320 lbf stem force rating
• 1-7/8 in bonnet
• 1-1/2 in stroke
