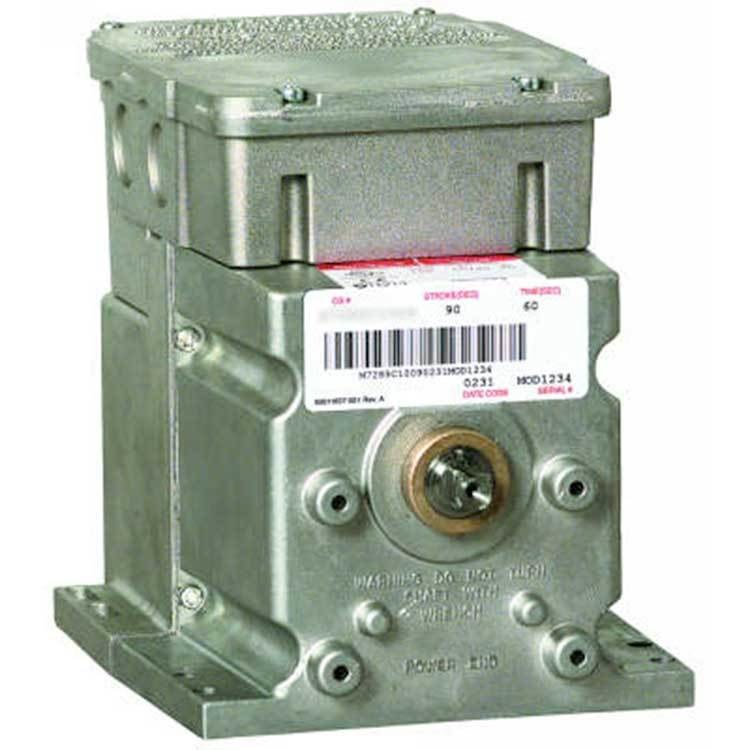

Actuator Proportional with 60LB Torque Spring Return Foot Mounted

The Series 90 Modutrol IV Motors are spring return and non-spring return modulating proportional control motors. Use these motors with controllers that provide a Series 90 output to operate dampers or valves.

• Integral junction box provides NEMA 3 weather protection
• Integral spring return returns motor to normal position when power is interrupted
• Motor and circuitry operate from 24 VAC models available with factory installed transformer or a field added internal transformer
• Spring return motors can operate valve linkages form power end or auxiliary end shafts for normally closed or normally open valve applications
• All models have dual shafts (slotted and tapped on both ends)
• All models have auxiliary switch cams
• Fixed torque throughout the entire voltage range
• Field addable interface modules can be mounted in the junction box to upgrade the motor to series 70 (electronic) control
• Motors are designed for either normally open or normally closed valves and dampers
